Carbon Dioxide Incubator Series

Category： Laboratory Instruments
Brand:Shu Yu

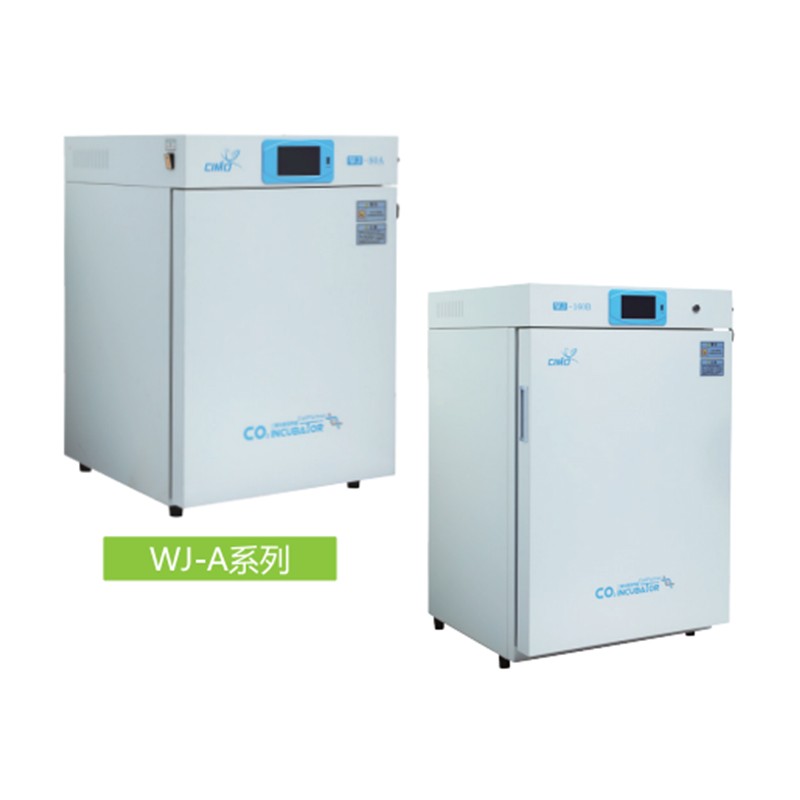

Name：WJ-A/B Carbon Dioxide Incubator Series
Application：The application fields include medical clinical practice, cell therapy, scientific research experiments, drug and vaccine development, etc.
INQUIRY EMAIL

Overview of Applications

Carbon dioxide incubator is a device for cell, tissue and
microorganism cultivation. It simulates the growth
environment of living organisms and provides a clean
space for in vitro cultivation, with suitable temperature,
humidity, CO2
concentration, acidity and alkalinity (pH) to
support the growth of cells and tissues. They are widely
used in immunology, oncology, genetics, pathology,
cellular dynamics, production of antigens and antibodies,
and drug screening

Structural Features
- The inner liner is made of 304 mirror stainless steel, with rounded corners for quick cleaning and no dead angle;
- Double-door structure, the outer door using magnetic door seal, sealing effect is good, can reduce the loss of gas in the cavity; with door
temperature control and open the door to detect the function, can effectively prevent moisture condensation; inner door is a high-quality
toughened glass door, open the outer door can be convenient to observe the sample situation, the inner door opens automatically shut down
the fan and stop the heating and gas supply, and effectively prevent the temperature in the cavity and the concentration of CO2 rushing; the
use of humidification tray humidification ( independent humidification tray can be removed or placed according to demand), to provide
high humidity sample culture environment; one-piece sample culture environment; one-piece humidification tray can be taken out or put in
according to demand, to provide high humidity; one-piece sample culture environment. Humidifying tray (independent humidifying tray
can be taken out or put in according to the demand), to provide a high humidity sample culture environment; one-piece perforated shelves
with anti-dislodgement and anti-tipping push-pull design, can be disassembled and cleaned without tools.
- Adopts 5-inch high-resolution color touch screen, multi-group data a screen display, easy to operate, with a screen password lock
function, Chinese and English interfaces can be selected; with sound, visual alarm function, while the screen menu has the appropriate
prompts; intelligent fuzzy PID control, high control accuracy, fixed value and the program is free to set up a multi-segment operation;
three levels of authority management function;
- The original imported infrared (IR) CO2
concentration sensor, infrared dual-beam technology, built-in temperature and pressure
compensation, high-temperature-resistant design, long product life.
- Heating system: six-side direct heat, PlD. control, each surface of the chamber is efficiently and evenly heated; airflow is gentle to
prevent rapid evaporation of the culture medium, improve the temperature recovery speed, to ensure a uniform and stable culture
environment;
- Provide one-key UV sterilization function to provide a sterile environment for cell culture.
- Real-time curve view and historical data storage and export function, data storage time 1 minute-999 minutes can be set, up to 180,000
operating data and event records can be stored; data can be viewed, monitored and can be exported through the USB interface, the
historical data can not be changed, and the original data can be truly and effectively traced.

Technical Parameters

Serial Number	Item	WJ-80A	NJ-160A	NJ-80B	NJ-160B
1	Model	WJ-80A	NJ-160A	NJ-80B	NJ-160B
2	Volume	80L	160L	90L	180L
3	Control method	P.I.D fuzzy logic control
4	Heating method	Gas jacket type		Water jacket type
5	HEAP Filter	optional equipment	optional equipment	standard equipment	standard equipment
6	Temperature control range	Room temperature +5℃-65℃
7	Temperature display resolution	0.1℃
8	Temperature fluctuation	±0.1℃ (ambient temperature 25℃, set 37℃, no load)
9	Temperature uniformity	≤0.3℃ (ambient temperature 25℃, set 37℃, no load)
10	CO₂ control range	0-20%
11	CO₂ control precision	0.1%
12	CO₂ supply pressure value	Recommended Pressure Reducing Valve Pressure Value 0.05Mpa
13	Relative humidity	≥90% (humidification by humidifying tray)
14	Temperature recovery time	≤5min (open the door for 30 seconds, ambient temperature 25℃, set value 37℃)
15	CO₂ concentration recovery time	≤5 min (open the door for 30 seconds, set value 5%)
16	Power consumption	400W	600W	600W	800W
17	Timing range	1 minute-999 hours and 59 minutes can be slowed down
18	Power supply voltage	AC 220V 50/60Hz
19	Stainless steel shelf	Standard 2 layers (can be added)
20	Workshop size mm	400x400x500	500x500x650	445x385×540	545×485×690
21	Overall dimension mm	550x610x810	665x690x960	550×555×870	650×655×1020
