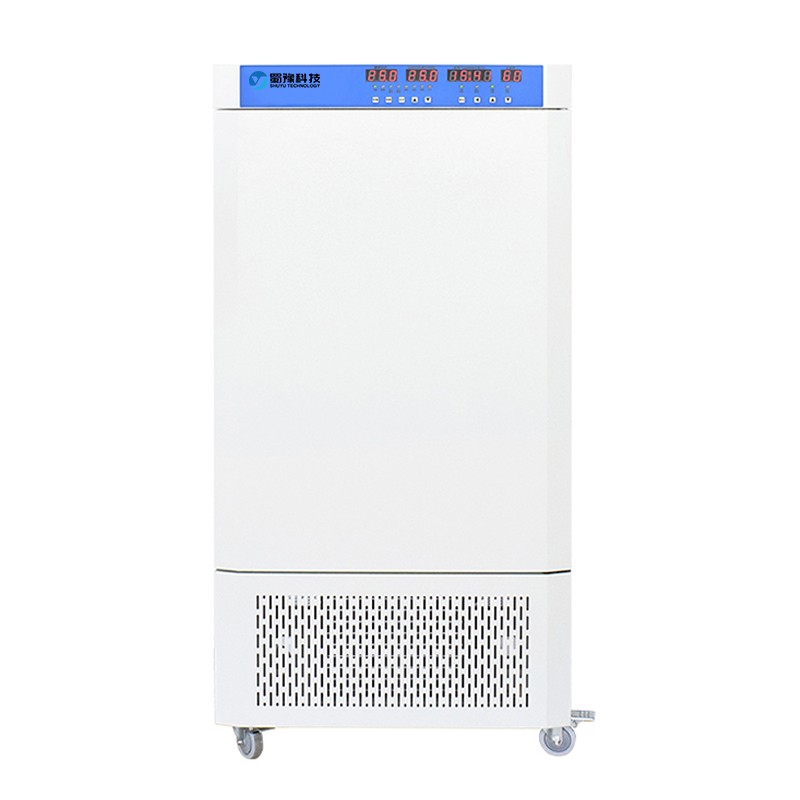

Light Environmental Chamber

Category： Growth Chamber
Brand:Shu Yu
Model：GZX- Ⅲ
Application areas: Ideal experimental equipment for production and research departments in the fields of biology, medicine, agriculture, animal husbandry, forestry, environmental science, etc.
INQUIRY EMAIL

Description
This Light Environmental Chamber is suitable for seed germination of plants, seedling cultivation, cultivation and preservation of bacteria and microorganisms, feeding of small animals and insects; as well as light and constant - temperature experiments for product quality inspection and other purposes. It is an ideal experimental equipment for production and scientific research departments in biology, medicine, agriculture, animal husbandry, forestry, environmental science, etc., helping to create Optimal Growth Conditions for various organisms.

Features
●The inner liner is made of high - quality mirror - finished stainless steel, featuring corrosion resistance, acid resistance, easy cleaning, and no rusting.
●Microcomputer - controlled intelligent temperature regulator with PID control, ensuring stable and precise temperature control. It has a 12 - bit LED high - brightness digital display for an intuitive and clear view, along with good control ability and anti - interference capability. Double temperature protection devices: The temperature regulator has automatic tracking and over - temperature alarm functions; once over - temperature occurs, the heating system will be cut off immediately. Meanwhile, a temperature protection device is installed inside the working chamber to ensure the safety of the cultures inside.
●The unique air - flow design of the working chamber ensures gentle air speed and uniform and accurate temperature inside the chamber.
●Three - side lighting design, with five - level adjustable illuminance, simulating the day - night cycle environment.

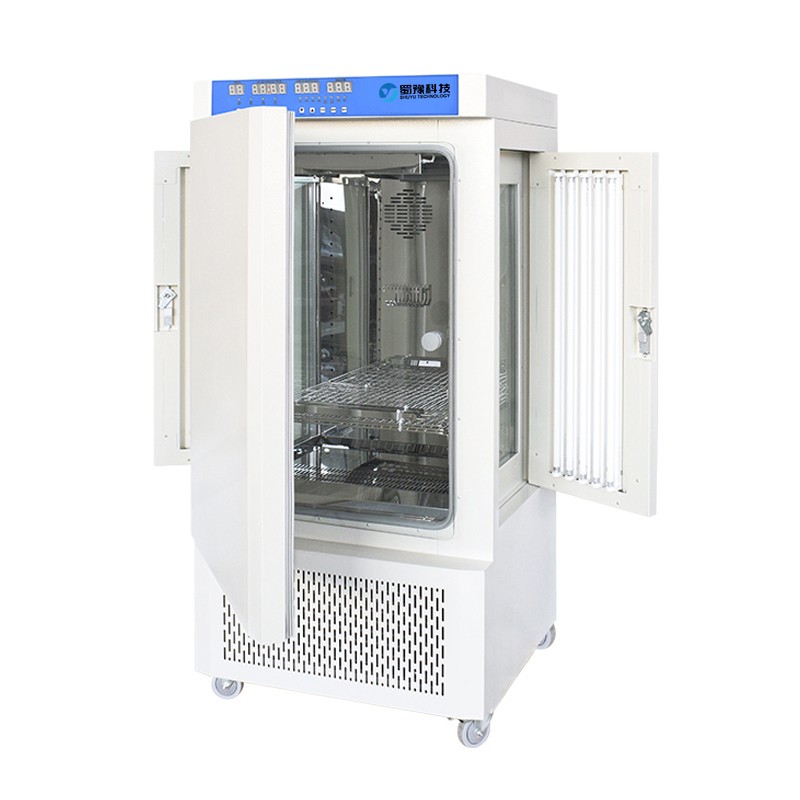

●Double - layer door structure: When the outer door is opened, the internal situation of the working chamber can be observed through the inner door made of high - strength tempered glass, without affecting the temperature.
●The inner shelf of the working chamber can be adjusted in height as needed.
●Adopts compressors of international well - known brands and environment - friendly CFC - free refrigerants.
●Independent over - temperature limit alarm system, which will automatically interrupt when the temperature exceeds the limit, ensuring the smooth progress of experiments (optional).

●Optional printer or RS - 485 interface to connect to a computer for recording the changes of experimental parameters (optional).

Parameters

Serial No.	Item	Technical Parameters
1	Product Model	GZX - 150BSH - Ⅲ	GZX - 250BSH - Ⅲ	GZX - 300BSH - Ⅲ	GZX - 400BSH - Ⅲ
2	Volume	150L	250L	300L	400L
3	Heating/Refrigeration Method	Stainless steel electric heater/Fully - enclosed non - fluorine compressor	Stainless steel electric heater/Fully - enclosed non - fluorine compressor	Stainless steel electric heater/Fully - enclosed non - fluorine compressor	Stainless steel electric heater/Fully - enclosed non - fluorine compressor
4	Temperature Control Range	With illumination: 5°C - 60°C; Without illumination: 0°C - 60°C	With illumination: 5°C - 60°C; Without illumination: 0°C - 60°C	With illumination: 5°C - 60°C; Without illumination: 0°C - 60°C	With illumination: 5°C - 60°C; Without illumination: 0°C - 60°C
5	Temperature Resolution	0.1°C	0.1°C	0.1°C	0.1°C
6	Temperature Fluctuation	±0.5°C	±0.5°C	±0.5°C	±0.5°C
7	Illuminance	0 - 10000Lx	0 - 15000Lx	0 - 20000Lx	0 - 25000Lx
8	Working Environment	20±5°C	20±5°C	20±5°C	20±5°C
9	Number of Shelves	3 pieces	3 pieces	3 pieces	3 pieces
10	Refrigerant	404A (Fluorine - free and Environment - friendly Type)	404A (Fluorine - free and Environment - friendly Type)	404A (Fluorine - free and Environment - friendly Type)	404A (Fluorine - free and Environment - friendly Type)
11	Working Time	1 - 999 minutes or continuous	1 - 999 minutes or continuous	1 - 999 minutes or continuous	1 - 999 minutes or continuous
12	Power	900W	1000W	1400W	1900W
13	Working Power Supply	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz	AC 220V 50Hz
14	Working Chamber Dimensions (mm)	500×400×800	570×500×850	570×540×950	700×550×1020
15	Overall Dimensions (mm)	700×625×1470	770×735×1530	780×780×1670	920×825×1770

Optional Accessories
●Intelligent multi - stage program controller
●Independent over - temperature limit controller
●Embedded printer
●LCD display instrument
●RS - 485 communication interface and software
●Power socket
●Sterilization device

Remarks
●Performance parameters are tested under no - load conditions: ambient temperature 20°C, ambient humidity 50% RH.
