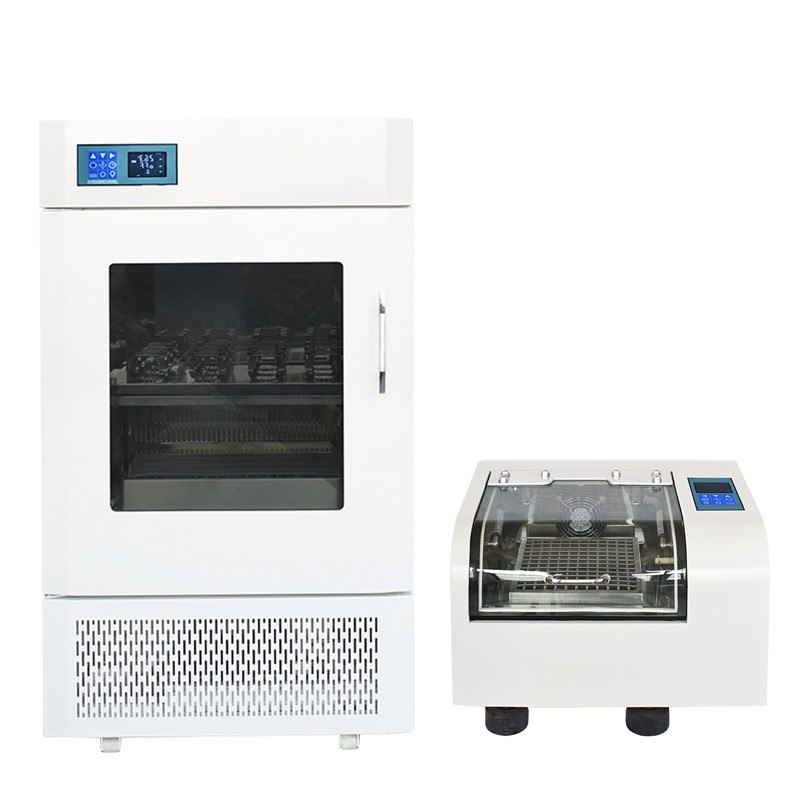

Constant Temperature Incubator Shaker

Category： Incubator Shaker
Brand:Shu Yu
Model：KYC/QYC
Application：Constant - temperature incubator shaker (also known as constant - temperature oscillator) is widely applied in the cultivation of bacteria, fermentation, hybridization, biochemical reactio
INQUIRY EMAIL

Description
Constant - temperature incubator shaker (also known as constant - temperature oscillator) is widely applied in the cultivation of bacteria, fermentation, hybridization, biochemical reactions, as well as the research on enzymes and cell tissues, where relatively high requirements are imposed on temperature and oscillation frequency. It is extensively used in research fields such as biology, medicine, molecular science, pharmaceutical production, food industry, and environmental protection.

Features
●Integrates a constant - temperature incubator and an oscillator. It features multi - purpose in one machine, low investment, small floor space, and multiple functions.
●Three - dimensional self - balancing eccentric wheel drive mechanism, enabling more stable and smooth operation.
●Intelligent acousto - optic alarm, with the function of memorizing and saving operation parameters, avoiding tedious operations.
●Large - screen backlit LCD display, capable of showing the set temperature and actual temperature, with an accuracy of ±0.1°C. Adopts a microcomputer - based intelligent temperature control instrument and PID control, ensuring stable and high - precision temperature control.
●High - precision rotation speed control system. The display screen can directly show the set rotation speed and actual rotation speed, with an accuracy of ±1rpm.
●Equipped with a timing function. The cultivation time can be set arbitrarily within the range of 1 - 999.9 hours. The display shows the timing time and remaining time. When the timing ends, the equipment automatically stops and gives out acousto - optic alarms. Adopts a DC motor, featuring wide speed regulation, constant torque, constant rotation speed, and maintenance - free operation.
●Adopts a brand - name CFC - free compressor (only for QYC series).
●The inner tank and shaking plate are made of high - quality mirror - finished stainless steel; stainless steel flask clamps of various specifications can be detached and freely combined.

parameters

Serial No.	Item	Technical Specifications
1	Product Model	KYC-100C	KYC-100B	QYC-200	QYC-2102C	KYC-1102C
2	Rotation Frequency	40 - 300rpm
3	Frequency Precision	±1rpm
4	Swing Amplitude	Φ26 (mm)
5	Maximum Capacity	100ml×9 or 250ml×6	100ml×16 or 250ml×12 or 500ml×9 or 1000ml×4	100ml×20 or 250ml×16 or 500ml×12 or 1000ml×6	100ml×48 or 250ml×30 or 500ml×24
6	Shaking Plate Size (mm)	290×250	400×370	450×400	500×350
7	Standard Configuration	100ml×9	500ml×3, 250ml×3, 100ml×8	500ml×3, 250ml×4, 100ml×10	250ml×24
8	Timing Range	1 minute - 999.9 hours
9	Temperature Control Range	RT + 5 - 60°C	4 - 60°C	4 - 60°C	RT + 5 - 60°C	RT + 5 - 60°C
10	Temperature Control Precision	0.1°C (constant temperature state)
11	Temperature Fluctuation	±0.5°C
12	Number of Shaking Plates	1 piece	1 piece	1 piece	2 pieces	2 pieces
13	Working Chamber Size (mm)	330×300×190	420×450×310	500×450×300	600×460×620
14	Overall Dimensions (mm)	540×450×390	620×600×520	740×700×520	700×590×1250
15	Power	350W	400W	600W	900W	600W
16	Power Supply	AC 220V 50Hz
