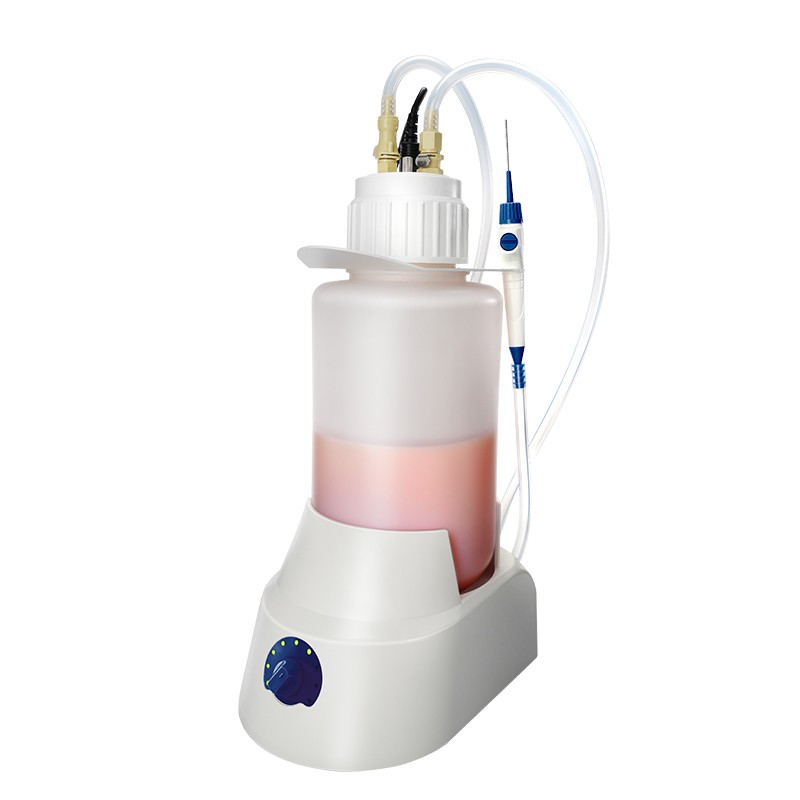

Vacuum Aspiration System

Category： Pipette
Brand:Shu Yu
Model：SafeVac
Application:Safe and efficient system for labs handling critical or biological
INQUIRY EMAIL

Applications
It is used for laboratory waste recovery and the separation of liquid and solid. It can be widely applied in cell culture, DNA extraction, microplate waste removal, and any other liquid separation or recovery processes. It serves as the best replacement for common vacuum pumps in the recovery of all kinds of waste liquids, especially biological, chemical, and radioactive liquids.

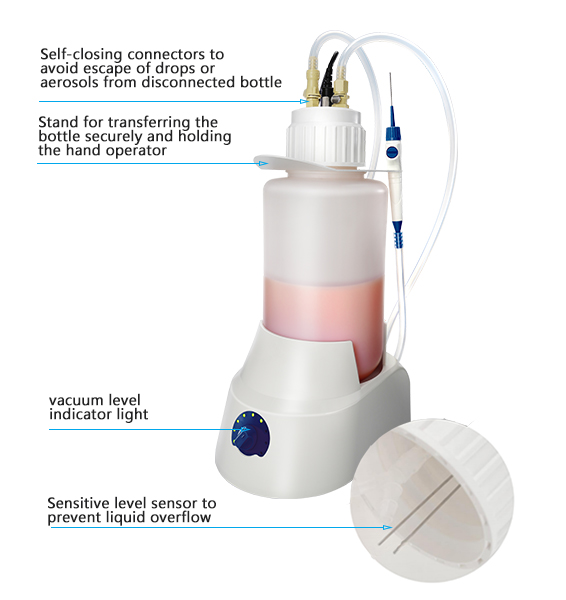

Features
●Compact and user-friendly design.
●A level detection system prevents bottle overfill.
●A control knob is available for vacuum setting.
●The parts in contact with liquids are autoclavable.
●Easy to disassemble and clean.
●An ideal tool to avoid lab air contamination and protect personnel safety.
●An adjustable vacuum level with an indicator light is designed for various applications.

Specifications
Wide range of adapters to fit well with different tubes, microplate and disk plate, all of which can be fully

autoclaved (At 121℃ 1 bar for 20 minutes. After autoclaving the equipment must be cooled down before use).

Item	Specification
Vacuum range	0 - 600mbar
Aspirating speed	15L/min (air)
Flow rate [liquid]	17mL/s
Bottle	4L
Autoclave component	Tube;waste bottle;operation handle;
Noise level	≤55dB
Input voltage	100 - 240VAC，50/60Hz
Dimension[W×D×H]	180×240×450mm
Weight	3kg

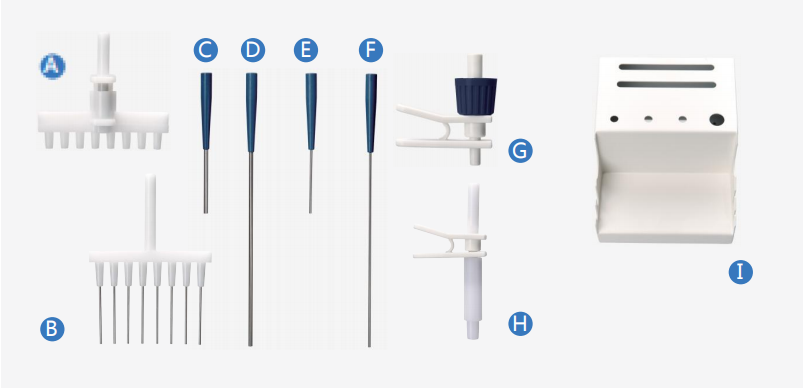

A	8-channel tip detrusion adapter 200μL tip
B	8 channel needle ∅1.5mm
C	Single needle ∅2.5mm, 40mm
D	Single needle ∅2.5mm, 120mm
E	Single needle ∅1.5mm, 40mm
F	Single needle ∅1.5mm, 120mm
G	tip detrusion adapter 200μL tip
H	tip detrusion adapter 1mL tip
I	SafeVac Handle bracket
