Lighting Incubator

Category： Growth Chamber
Brand:Shu Yu

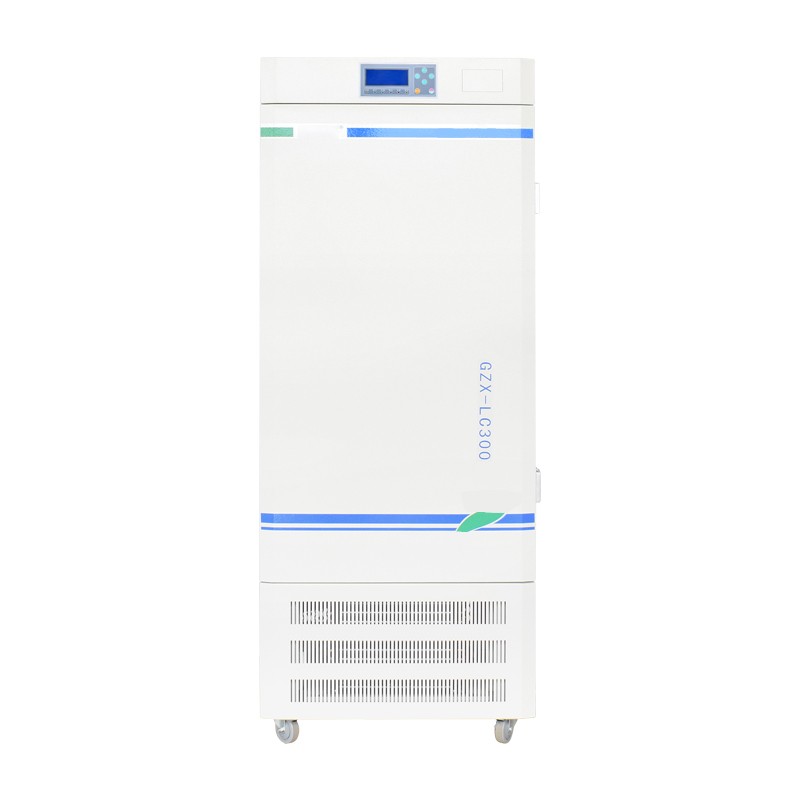

Model：GZX-L Lighting Incubator
Application areas: Ideal experimental equipment for production and research departments in the fields of biology, medicine, agriculture, animal husbandry, forestry, environmental science, etc.
INQUIRY EMAIL

Description
This Growth Chamber is suitable for seed germination of plants, seedling cultivation, cultivation and preservation of bacteria and microorganisms, feeding of small animals and insects; as well as light and constant - temperature experiments for product quality inspection and other purposes. It is an ideal experimental equipment for production and scientific research departments in biology, medicine, agriculture, animal husbandry, forestry, environmental science, etc., helping to create Optimal Growth Conditions for various organisms.

Features
●The inner tank is made of high - quality mirror stainless steel material, featuring corrosion resistance, acid resistance, easy cleaning, and never rusting.
●Microcomputer - controlled intelligent temperature controller, with PID control, ensuring Precise Temperature Control, stable temperature control and high precision. It uses liquid crystal display, which is intuitive and clear, and has good control ability and anti - interference ability.
●Double temperature insurance device: The temperature controller has automatic tracking and over - temperature alarm functions; once over - temperature occurs, the heating system will be cut off immediately. Meanwhile, a temperature insurance device is installed in the working chamber to ensure the safety of the cultures in the working chamber, realizing Safe Operation with Alarms and Overheat Protection. The unique air duct design of the working chamber ensures gentle air speed and uniform and accurate temperature inside the chamber.
●Adopt high - brightness, long - life Energy - Efficient LED Lighting with laminar - type pre - installed design, saving 80% of lighting electricity and 50% of the whole - machine electricity. The illuminance can be adjusted steplessly to achieve Uniform Illumination, and the required brightness can be set according to user needs to simulate day and night environments.

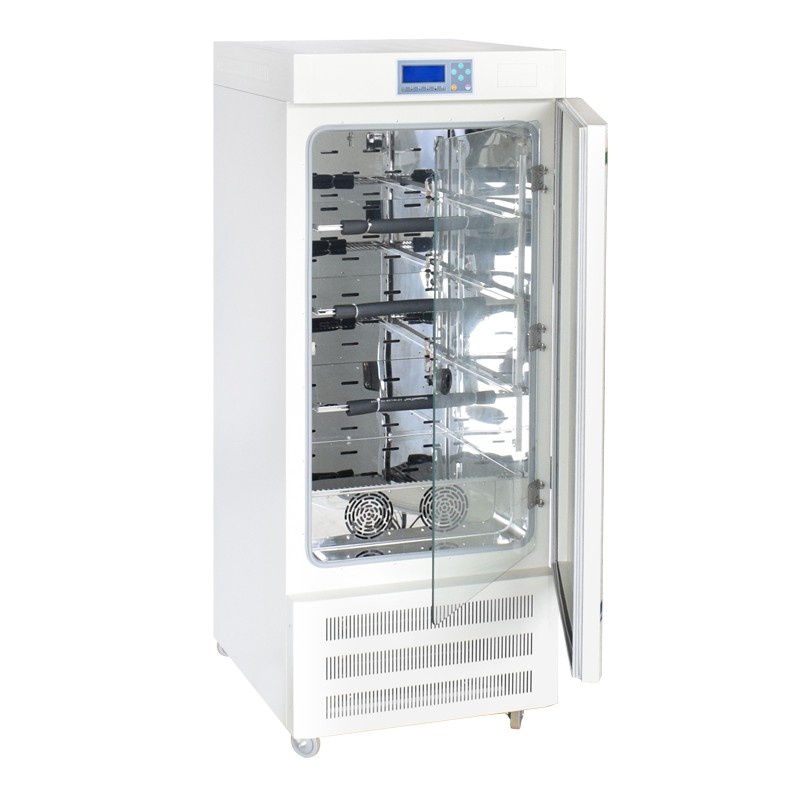

●Double - layer door structure: After the outer door is opened, the inner door made of high - strength tempered glass allows observation of the experiment in the working chamber without affecting the temperature.
●An internationally renowned brand compressor is selected, with environmentally friendly and ozone - free refrigerant.
●Independent over - temperature alarm system, which will automatically cut off the heating system when the temperature exceeds the limit, ensuring the safety of experimental items (optional), further enhancing Safe Operation with Alarms and Overheat Protection.
●Can be equipped with a printer or RS - 485 interface (choose one) (optional), facilitating better control and data recording.

Parameters
(With options considering Capacity Options to meet different needs)

Serial No.	Item	Technical Parameters		Key Differences
1	Product Model	GZX-LC150	GZX-LC300	-
2	Volume	160L	300L	GZX-LC300 has larger capacity
3	Heating Method	Stainless steel electric heating tube / Fully-enclosed ozone-free compressor	Stainless steel electric heating tube / Fully-enclosed ozone-free compressor	Same
4	Temp Control Range	With light: 5-50°C / Without light: 0-50°C	With light: 5-50°C / Without light: 0-50°C	Same
5	Temp Resolution	0.1°C	0.1°C	Same
6	Temp Fluctuation	±0.5°C	±0.5°C	Same
7	Light Source / Illuminance	Laminated LED lighting panel / 0-30000Lx	Laminated LED lighting panel / 0-30000Lx	Same
8	Illuminance Adjustment Range	0-100% Emax or program-controlled stepless dimming	0-100% Emax or program-controlled stepless dimming	Same
9	Shelf / Laminated Plate Qty	2 pieces / 3 pieces	3 pieces / 4 pieces	GZX-LC300 has more shelves/plates
10	Refrigerant	404A	404A	Same
11	Working Time	Continuous or 1-9999 minutes or 1-999 hours of timed operation	Continuous or 1-9999 minutes or 1-999 hours of timed operation	Same
12	Power	900W	1500W	GZX-LC300 has higher power
13	Working Power Supply	AC 220V 50Hz	AC 220V 50Hz	Same
14	Working Chamber Dimensions (mm)	570×470×600	570×470×1080	GZX-LC300's chamber is taller
15	Overall Dimensions (mm)	700×660×1320	700×660×1800	GZX-LC300 is taller overall

Optional Accessories
●Independent over - temperature limit controller
●Built - in printer
●RS - 485 communication interface & software
●Power socket
●Sterilization device

Remarks
Performance parameters are tested under no - load conditions: Ambient temperature is 20°C, and ambient humidity is 50% RH.
Program Controller
●Can set 1 - 8 groups (99 segments per group) with Programmable Settings to meet various experimental requirements.
●Can separately set illuminance, temperature, and running time for each group (segment) through Programmable Settings.
●Each segment can be set to run for 9999 hours or 9999 minutes.
●Compared with traditional light incubators, it saves over 80% on lighting electricity and over 50% on overall machine electricity, thanks to Energy - Efficient LED Lighting.
●Top - mounted vertical lighting, more suitable for plant growth needs, contributing to Uniform Illumination.
●Flicker - free dimming control, making light more uniform and non - glare, ensuring Uniform Illumination.
