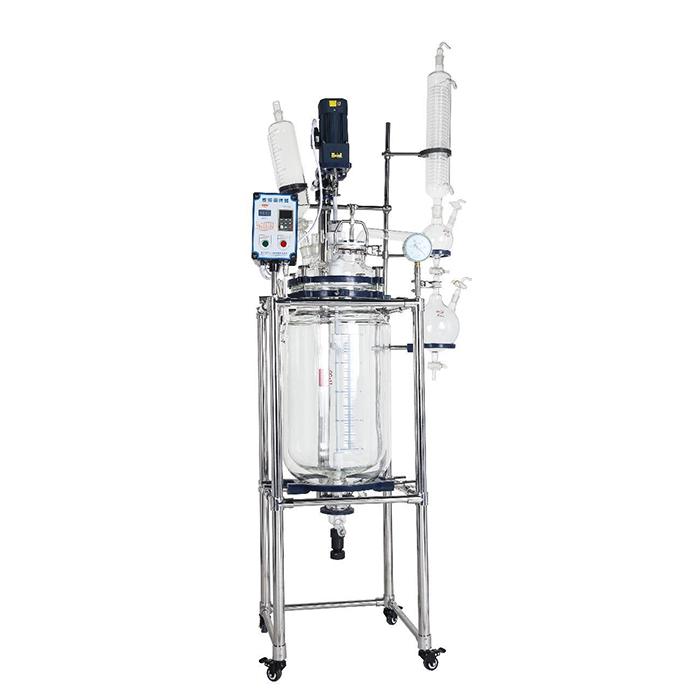

Double-Layer Glass Reactor YSF-20L

Category： Glass Reactor
Brand:Shu Yu
Model：YSF-20L
application：Laboratory,School,testing instrument.
INQUIRY EMAIL

Working Principle
The double-walled Glass Reactor features a stirring system, condensation, addition, reflux, and collection systems. The inner layer holds the reaction solvent for stirred reactions, while the jacket circulates heating or cooling sources to facilitate high-temperature reactions (maximum temperature up to 300°C) or low-temperature reactions (minimum temperature down to -80°C). During heated reactions, vacuum conditions enhance evaporation efficiency (requires vacuum apparatus connection). Solvent vapour condenses into liquid upon passing through the glass cooling coil (requires cooling apparatus connection), which may be refluxed into the reactor or recovered via the lower valve of the reflux elbow. Upon reaction completion, material discharges via the bottom side outlet. The fully transparent process offers complete visibility, making it an ideal pilot-scale apparatus for modern biopharmaceuticals, fine chemicals, and novel material synthesis.

Product Features
1. This unique apparatus features an all-stainless steel frame construction (with precision-fitted three-way and four-way connectors), offering a compact, robust, and non-deformable structure that facilitates easy mobility.
2. All components in contact with materials employ high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene (PTFE), ensuring stable performance, minimal chemical interaction with materials, and convenient, safe operation.
3. The proprietary variable-frequency speed control allows precise and flexible operation across high, medium, and low speeds. An optional fully explosion-proof system is available, featuring a dual-display explosion-proof box that digitally shows both rotational speed and vessel material temperature. This system offers stable performance, clear display of control parameters and data, and straightforward operation.
4. The stirring system employs ceramic bearings and mechanical seals to prevent wear and debris shedding from the stirrer shaft. It exhibits high-temperature resistance, wear resistance, and excellent sealing performance.
5. Incorporates PT100 temperature sensors with glass thermometer sleeves.
6. Vacuum pressure gauge displays real-time vacuum levels via pointer indication.
7. Crescent-shaped stirrer blades: 304 stainless steel + PTFE-coated impellers; stirrer shaft constructed from 304 stainless steel. Outer PTFE tubing provides high strength and exceptional corrosion resistance.
8. Glass + PTFE discharge valve enables side discharge without liquid accumulation, facilitating rapid solution recovery.
9. Equipped with swivel castors with brakes at the base for easy overall movement and convenient operation.

parameters

Item	Description
Model	YSF-20L
Effective Volume in Vessel (L)	20L
Jacket Volume in Vessel (L)	About 6L
Voltage	220V50HZ
Glass Material Component	High Borosilicate Glass 3.3
Vessel Temperature Range	-80℃~+250℃
Temperature Accuracy	±1℃
Constant Pressure Funnel Volume (L)	1L
Constant Pressure Funnel Specification	Upper 29# Standard Ground Joint, Lower Matched 40# Ground Joint
Condenser Specification	Φ85×600H (mm)
Condenser Heat Exchange Area (m²)	0.3m²
Condenser Circulating Interface Size	13mm
Receiver Volume (L)	3L
Allowable Pressure in Vessel (Mpa)	-0.1-0.0
Allowable Pressure of Jacket (Mpa)	≤0.3
Agitator Motor - Rated Power (W)	300W
Agitator Motor - Speed Regulation Mode	Servo Motor, Frequency Control
Agitator Motor - Speed Regulation Range (rpm)	0-800rpm/min
Vessel Cover Openings (340mm) - Manhole	60# Flange Port
Vessel Cover Openings (340mm) - Solid Feeding Port	95# Flange Port
Vessel Cover Openings (340mm) - Constant Pressure Funnel Port	40# Ground Joint
Vessel Cover Openings (340mm) - Gas Release Port	34# Ground Joint
Vessel Cover Openings (340mm) - Condenser Connection Port	50# Ground Joint
Vessel Cover Openings (340mm) - Temperature Measuring Port	43# Flat Flange
Main Frame Material	SUS304 Stainless Steel + Fluororubber Flange
Agitator Impeller	Φ15mm Impeller, Blade 205mm
Vessel Jacket Inlet and Outlet Specification	Outer Diameter 35mm Flange, with 4-point External Thread Stainless Steel Inlet and Outlet
Temperature Sensor	PT100, Glass Thermowell Length 500mm
Vacuum Suction Port Size	10mm
Discharge Valve	No Liquid Accumulation Discharge Valve, Outlet Outer Diameter 33mm
Ambient Temperature for Use (℃)	-5-35
Machine Dimensions (mm)	850L×690W×2150H (mm)
Packaging Dimensions (mm)	1580L×710W×710H (mm)
Net Weight of Machine (Kg)	94Kg
