A Comprehensive Guide to the Electric Thermostat Incubation Cabinet

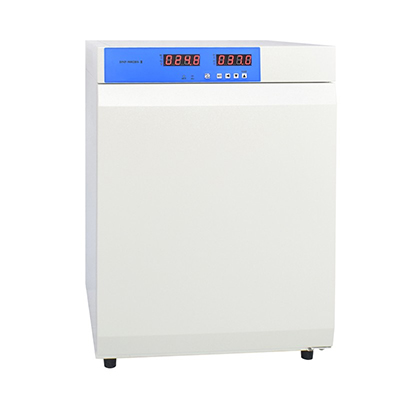

I. Sketch Map
①Cabinet body
②Door switch
③Glass door catch
④Glass door
⑤Thermal regulator
⑥Shelf
⑦Cabinet door

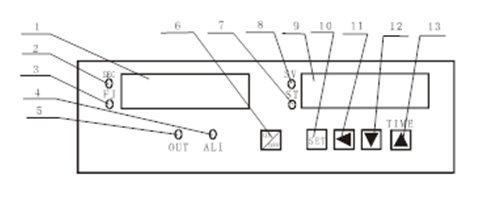

II. Instructions of the face plate of the intelligent thermostat
1. Measurement value display window
2. Operating (timing) light
3. Blower indicator light 5. Overtemperature indicator light
5. Heating indicator light 6. Power ON/OFF key
7. Time Setting indicator light 8. Temperature
9. Setting display window (other functions display)
10. Set Key 11. Move key
12. Decrease key 13. Increase key (remaining work time)

III. Applicable scope
This incubation cabinet is a R&D equipment designed for the cultivation of bacteria and microbes and scientific research by medical and hygiene department, university and college, biotechnology, agriculture and research and development departments.

IV.How to use and operate
1. Control Panel Display Instructions
Left Window (4-digit LED Display) : Shows real-time measured temperature
Right Window (4-digit LED Display) : Shows set temperature, set time, or countdown time. The corresponding indicator light will turn on.
2. Button Functions (Bottom Right of the Panel)
ON/OFF Button : Power switch
SET Button (Core Setting Button)
● press: Enter temperature setting mode (the right window shows the previously set temperature, the last digit flashes, and the temperature indicator light turns on; parameters can be modified).
● presses: Enter time setting mode (the right window shows the previously set time, the time indicator light turns on; parameters can be modified. If set to 0000, the timer does not work, and the right window shows the set temperature).
●presses: Return to standby mode
Warning : P/I/D parameters are preset at the factory. Unauthorized personnel are prohibited from adjusting them!
Press and hold for 5 seconds: Enter advanced parameter setting mode (LOCK/SC/P/I/D/Tr/FJ). After setting, press SET to save, then press and hold SET for 5 seconds to exit.
LOCK: Parameter lock (0 = SC parameter can be modified; 168 = P/I/D/Tr/FJ parameters can be modified)
SC: Temperature correction value (-20.0~+20.0℃)
Tr: Temperature rise rate (1~20. A smaller value means slower temperature rise but less overshoot; a larger value means faster temperature rise but more overshoot)
FJ: Fan switch (0 = Off; 1 = On)
Move Button (" " Button) : When setting parameters, press to switch between the units, tens, and hundreds digits (of the number to be modified).
▲ Button (Increase Button) : When setting parameters, press to increase the flashing digit by 1. During operation, press to show the set temperature or running time on the right window.
▼ Button (Decrease Button) : When setting parameters, press to decrease the flashing digit by 1.
3. Operation Instructions
After setting parameters, the instrument will control the temperature according to the set value and start the countdown based on the set time.

When the countdown ends: The instrument stops operating, displays "END", and beeps for about 10 seconds. To continue operation, press the SET button.
