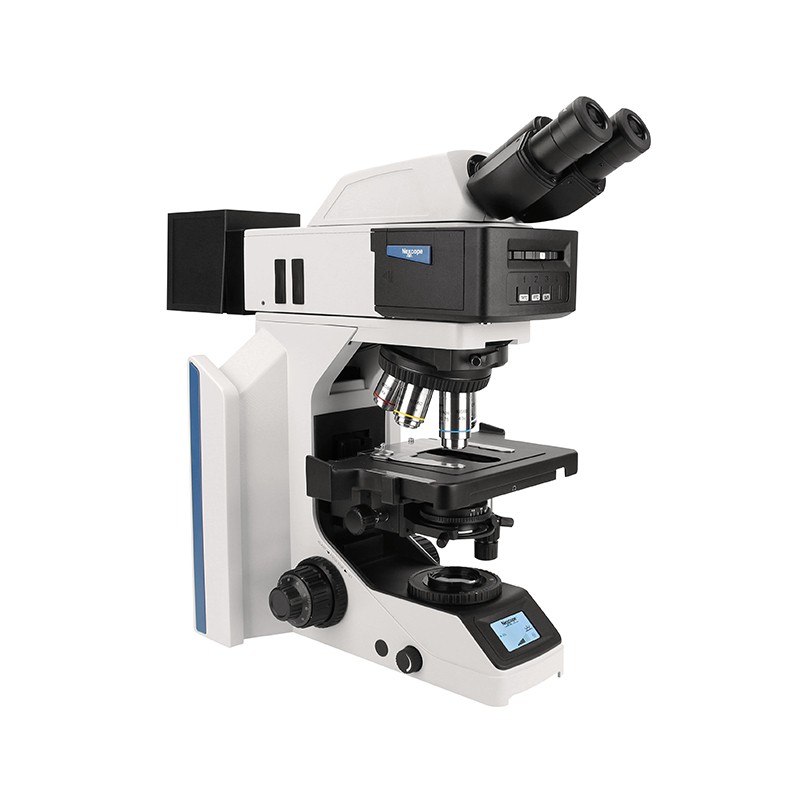

Upright Biological Microscope
- Category： Biological microscopes
- Brand:Shu Yu
- Product name：NE700 Series Upright Biological Microscope
- Application:This microscope is widely used in education & teaching, basic scientific research, and clinical & public health testing fields.
The latest NE700 series microscope is designed for professional laboratory microscopic observation. On the one

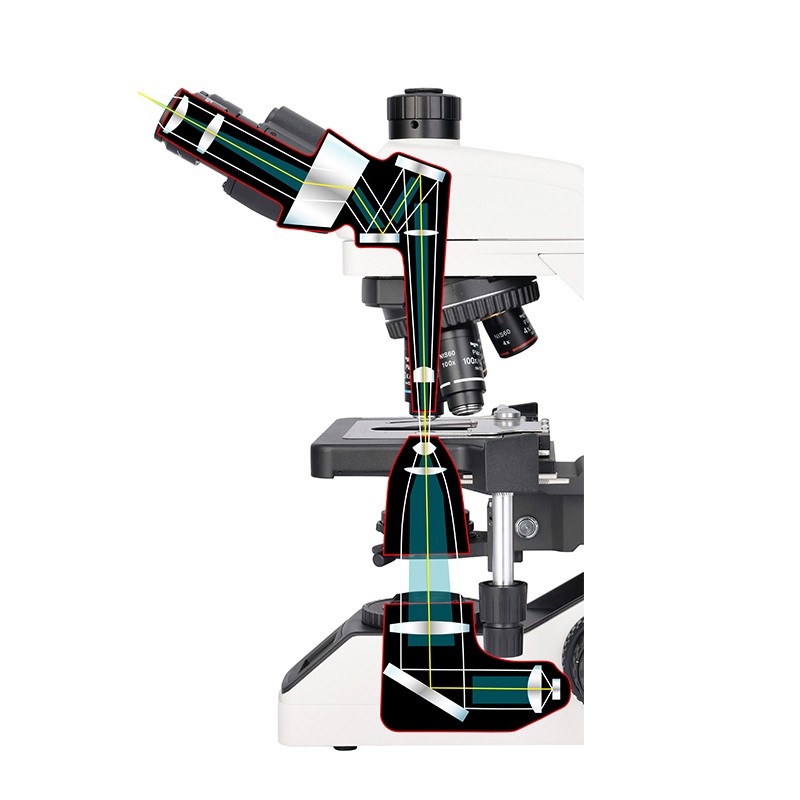

hand it has upgraded optical system , NIS infinity optics system provides excellent extendibility for this microscope,
high numerical aperture (NA) plan achromatic objective and various types of optical components which have adopted
multilayer coating technology could ensure the image quality. On the other hand, improving comfort and operation
convenience continuously, and the LCD screen in front of the microscope displays real-time
status of microscope during working, universal condenser, stopper that can be used to set the upper limit of the stage
height etc., these structures ensure that beginners can use it smoothly. Ergonomic design helps you to stay focused for
longer by reducing the strain on your body, which is the best choice for scientific research experimenters and medical
examiners for microscopic observation.
User-friendly, even beginners can operate stress-free

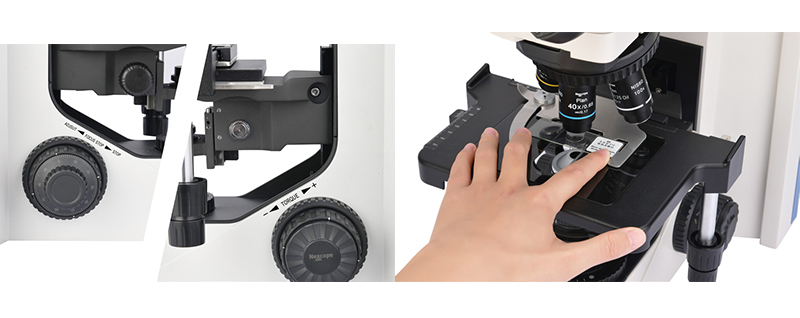

Comfortable and worry free focus knob
Low position focus knob design,different areas on the specimen
slide can be easily explored while resting your hands on the
table,with adjustable torque could improve comfort . NE700 is
equipped with a stopper that can be used to set the upper limit of
the stage height, the stage stops at the set height even when the
focus knob is turned, thereby eliminating the risk of over-focusing
and breaking the slides or damaging the objectives.
Put Slide by one hand
Slides can be quickly slid in and out with one hand. The universal
sample holder is suitable for a variety of slide types, such as
Hemocytometer.
Specifications
|
Category |
Specifications |
|
Optical system |
Infinity optical system |
|
Eyepiece (F.O.V., mm) |
10X/22mm, with diopter adjustment -5 ～ +5, Dia.Φ30 |
|
Viewing tubes |

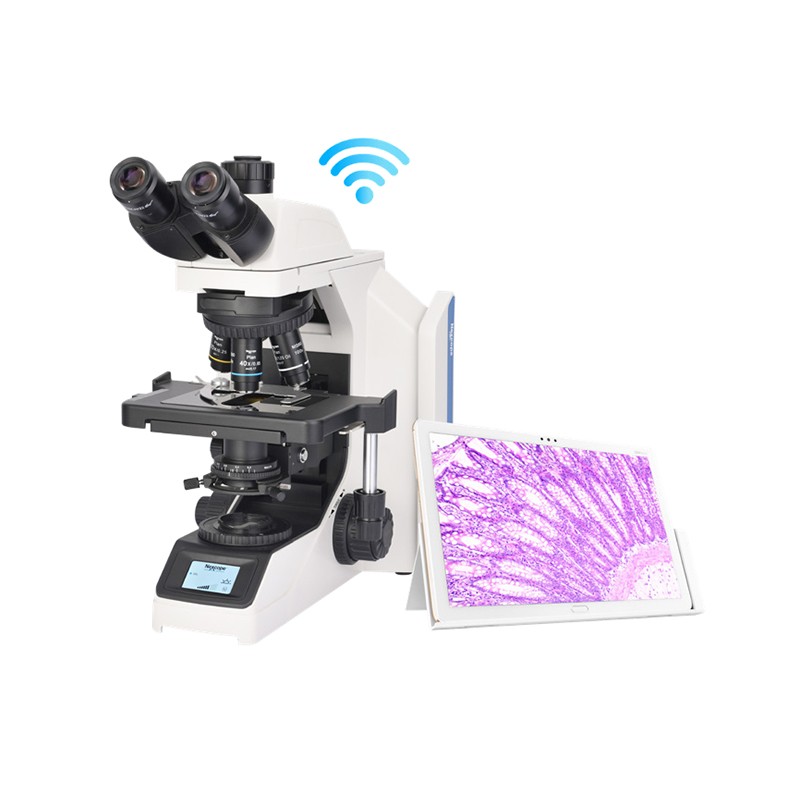

1. Inclination angle 30°, Seidentopf binocular head with 360 degree rotation, pupillary distance:47-78mm 2. Inclination angle 30°, Seidentopf trinocular head, pupillary distance:47-78mm, Eyepiece/Port R:T=50:50 3. Inclination angle 30°, Seidentopf trinocular head, pupillary distance:47-78mm, Eyepiece/Port R:T=100.0/100.0 4. Inclination angle 30°, digital viewing head, pupillary distance:47-78mm 5. Inclination angle 30°, wireless WIFI digital viewing head, pupillary distance:47-78mm |
|
Objective |
1. Infinite plan achromatic objective(4X,10X,20X,40X,100X) 2. Infinite plan phase contrast objective(10X,20X,40X,100X) 3. Infinite plan S-Apo fluorescence objective(4X,10X,20X,40X,100X) |
|
Nosepiece |
Quintuple coding nosepiece |
|
Stage |
Rackless stage 235X150mm, moving range 78mmX54mm, hard oxidized stage, can be replaced by tempered glass stage or sapphire stage |
|
Condenser |
1. Abbe condenser(NA0.9),with Iris diaphragm 2. Swing-out achromatic condenser(NA0.9/0.25), with Iris diaphragm 3. NA1.25 sliding-in turret phase contrast kit 4. NA1.3-1.26 oil dark filed condenser5. NA0.7-0.9 dry dark filed condenser |
|
Focusing system |
Coaxial coarse and fine adjustment, coarse stroke 28mm, fine precision 0.001mm |
|
Illumination |
3W color and temperature adjustable,LED (LCD display magnification, time sleeping,brightness indication and lock,etc.) |
|
|
LED illumination, 3 wave 4-position fluorescent current, with Iris diaphragm |
|
Camera attachment |
1X photo attachment, 0.5X photo attachment, adjustable focsing |
|
Phase contrast |
Simple polarization set |
