NE900 Research Microscope
- Category： Biological microscopes
- Brand:Shu Yu
- Product name：NE900 Research Microscope China laboratory manufacturers factory price
- Application ：Research Institutes, Colleges and Universities, Healthcare, Biomedicine
series Research Upright Biological Microscope
Nexcope constantly explores the research needs in the fields of pathology, cytology and virology, and constantly
optimizes and upgrades the NE900 research upright microscope, so that it has nearly perfect optical performance
and mechanical structure design. NIS Infinite Optical System has accurate imaging and strong chromatic
aberration correction ability. With the illumination system with high color reproduction, high-quality optical
components and fully functional accessories, this microscope is especially suitable for cutting-edge life science
research that needs darkfield, differential interference contrast or high-performance fluorescence. In addition,
a variety of motorized and intelligent components and powerful imaging software can meet the needs of quick
overview and detailed inspection of samples, easily complete repetitive work, greatly increase the simplicity
of operation, increase operational comfort and maximize work efficiency. Nexcope NE900 can provide an ideal
microscopic imaging solution for both clinical laboratory and scientific research laboratory.
E910/NE920 Outstanding Basic Performance Design
Lighting system with high color reproduction abilit
Through Kohler system and sunlight simulation light source (halogen
source and sunlight LED source are optional), the color temperature
is stable and the brightness is uniform, which can easily restore the
true color of the sample and distinguish similar colors, which is very
important for pathological diagnosis.
The eyepiece with a large field of view of 25mm is adopted, which has
a larger field of view, more comprehensive observation content and
faster sample observation. For samples that need panoramic view, a
microscope with a large field of view is a more correct choice
NE930
Oblique viewing head and eyepiece are more comfortable to observ
The eyepiece tube is adjustable in height, pupil distance and visibility,
which can conveniently adjust the observation tube to the height suitable
for the current user, and can observe in a comfortable posture whether
sitting or standing. The optical path switching rod can be installed on any
side of the observation tube according to the operator's habit, so as to
truly create a microscope suitable for everyone.
When switching objective lenses with different magnifications, it is
necessary to adjust the illumination intensity to ensure the same
illumination brightness in the field of view under different magnifications.
NE900 series with coded objective turntable can intelligently remember
the appropriate illumination intensity under different magnification, and
automatically adjust with the change of objective magnification to reduce
visual fatigue.
NE950 High Accuracy and Easy Operation
The motorized stage provides control movement in
X, Y and Z directions.
Only one USB cable is needed to connect the computer with the controller built in the fuselage to realize
integrated motorized control; Built-in Z-axis adopts high-precision motor screw structure to ensure nano-scale
Z-axis slice scanning; Imported screw rod adopts extrusion process, which has the characteristics of enhancing
consistency and eliminating reverse gap error. Flexible stage control program can meet a variety of sports needs.
The supporting control rocker is powerful and easy to operate

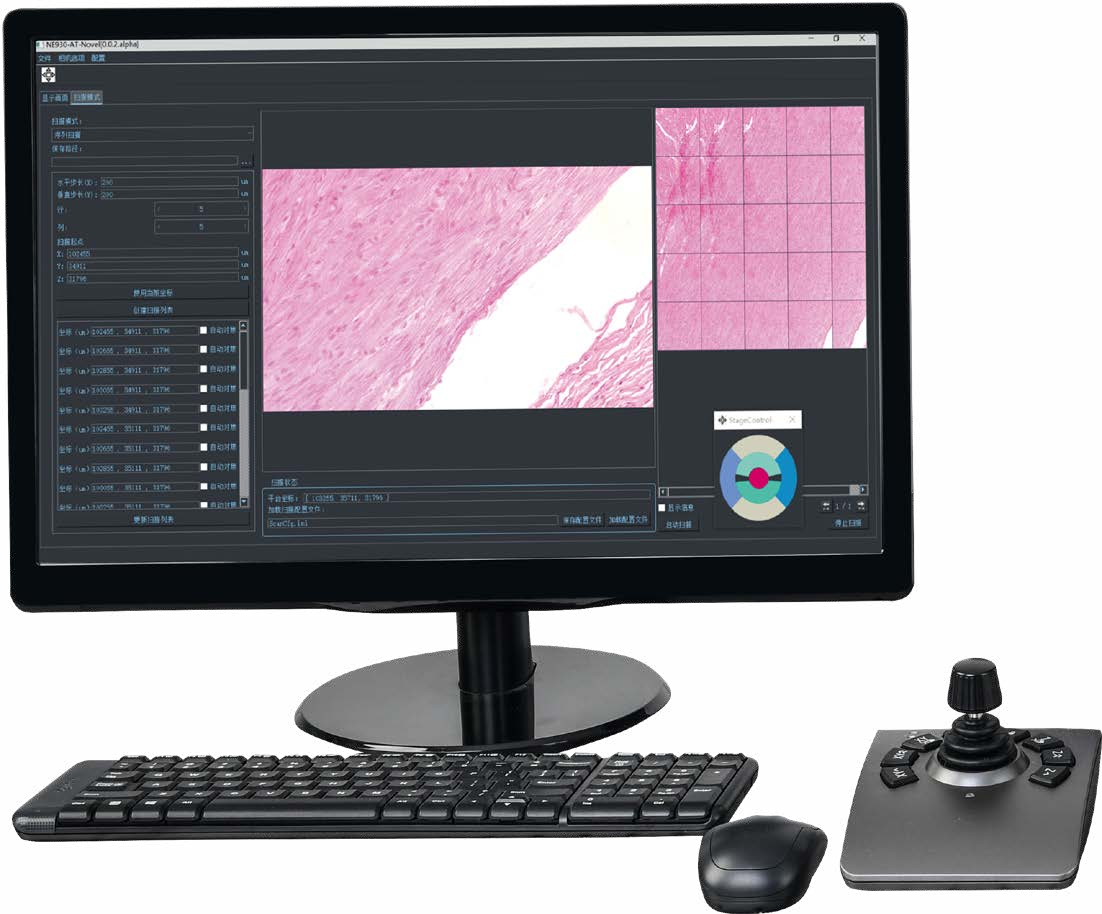

Touch the control screen help to save space and control flexibly.
The front touch control screen integrated with the microscope does not occupy the desktop position. The interface is simple, the operation
is simple, and the programmable control simplifies the repeated observation and imaging process. Powerful: Three-axis coordinate display,
speed gear display, objective lens motorized switching, objective lens dual-hole orientation switching, position memory and return, relative
coordinate display, objective lens focus compensation, temporary upper limit setting, stage escape and recovery, display screen day/night
mode, etc.
|
Category |
Project |
NE910 |
NE920 |
NE930 |
NE950 |
|
Microscope frame |
Optical system |
\multicolumn{4}{c}{NIS infinite optical system} |
|
|
|
|
|
Nosepieces |
• Manual sextuple nosepiece |
• Intelligent sextuple nosepiece |
Motorized sextuple nosepiece |
Motorized sextuple nosepiece |
|
|
Focusing |
\multicolumn{3}{c}{Low-hand coaxial focusing mechanism (with limit and elastic adjusting ring), focusing range is 35mm, and fine adjustment grid value is 1um.} |
Low-hand motorized focusing mechanism, independent operation of left and right handwheels, three-speed adjustment, focusing range of 30mm, repetitive positioning accuracy of 0.1μm, motorized escape and recovery mechanism. |
|
|
|
|
Transmitted illumination |
\multicolumn{3}{c}{•12V100W halogen lamp •3W LED light source} |
3WLED, Transmitted source brightness motorized control, light intensity management function. |
|
|
|
|
Monitor |
- |
Microscope use status display screen |
- |
Touch control screen |
|
Eyepiece tube |
Binocular tube |
\multicolumn{4}{c}{Depression angle: 30 degrees, pupillary distance adjustment range: 47-78 mm.} |
|
|
|
|
|
Trinocular tube |
\multicolumn{4}{c}{Eyepiece/port: 100/0, 20/80, 0/100, depression angle: 30 degrees, pupillary distance adjustment range: 47-78 mm.} |
|
|
|
|
|
Ergonomic trinocular tube |
\multicolumn{4}{c}{Eyepiece/port: 100/0, 20/80, 0/100, depression angle: 0-30 degrees, pupillary distance adjustment range: 47-78 mm.} |
|
|
|
|
Eyepiece |
Eyepiece |
\multicolumn{4}{c}{•SW10X (25) • SW10X (22) • EW12.5X (17.5) • WF15X (16) • WF20X (12)} |
|
|
|
|
Stage |
Manual stage (Corning glass countertop) |
Moving distance: 78(X)×32(Y)mm, 1mm grid, accuracy of 0.1mm, movable handle can be raised and lowered by 18mm, the tightness can be adjusted, and the bump guide mechanism is convenient, so it can be sliced with one hand. |
- |
- |
- |
|
|
Manual stage (Sapphire glass countertop) |
Moving distance: 78(X)×32(Y)mm, 1mm grid, accuracy of 0.1mm, movable handle can be raised and lowered by 18mm, the tightness can be adjusted, and the bump guide mechanism is convenient, so it can be sliced with one hand. |
- |
- |
- |
|
|
Motorized stage |
- |
- |
- |
High-precision motorized XY stage (stroke: X axis, 125mm; Y-axis, 75mm), and the repeated positioning accuracy is ±1.5 μm. |
|
Condensing lens |
Brightfield condenser |
Manual swing condenser |
Manual swing condenser |
motorized swing condenser |
Universal condenser (4X-100X) |
|
|
Rotating disc condenser |
• quintuple phase contrast turntable condenser |
• quintuple DIC turntable condenser |
• Octagonal phase contrast DIC universal turntable condenser |
Universal condenser (4X-100X) |
|
|
Darkfield condenser |
\multicolumn{4}{c}{• Darkfield condenser dry • Darkfield condenser Oil} |
|
|
|
|
FL-900 Epi-fluorescence illuminator |
Epi-fluorescence illuminator |
With field diaphragm and aperture diaphragm, density plate, kohler illumination system and ultraviolet eye protection screen can be used. |
|
|
|
|
|
Filter cube turret |
\multicolumn{4}{c}{Sextuple epi-fluorescence cube turret (manual)} |
|
|
|
|
|
Epi-illumination light source |
\multicolumn{4}{c}{• Osram mercury lamp HBO 100W/2 • Metal halide light source 75W • Four-color LED fluorescent 5W} |
|
|
|
|
FL-900C/D Epi-fluorescence illuminator |
Epi-fluorescence illuminator |
\multicolumn{4}{c}{Recapture lighting with ultraviolet eye protection screen} |
|
|
|
|
|
Filter cube turret |
\multicolumn{4}{c}{Sextuple epi-fluorescence cube turret (manual/motorized), up to four fluorescent lens groups can be installed.} |
|
|
|
|
|
Epi-illumination light source |
\multicolumn{4}{c}{3WLED fluorescent source, up to 4 color fluorescent light sources can be installed, with adjustable brightness.} |
|
|
|
|
Observation method |
Observation method |
\multicolumn{4}{c}{Brightfield, Epi-fluorescence, darkfield, phase contrast, Simple polarizing, DIC} |
|
|
|
