School Biological Microscope
- Category： Biological microscopes
- Brand:Shu Yu

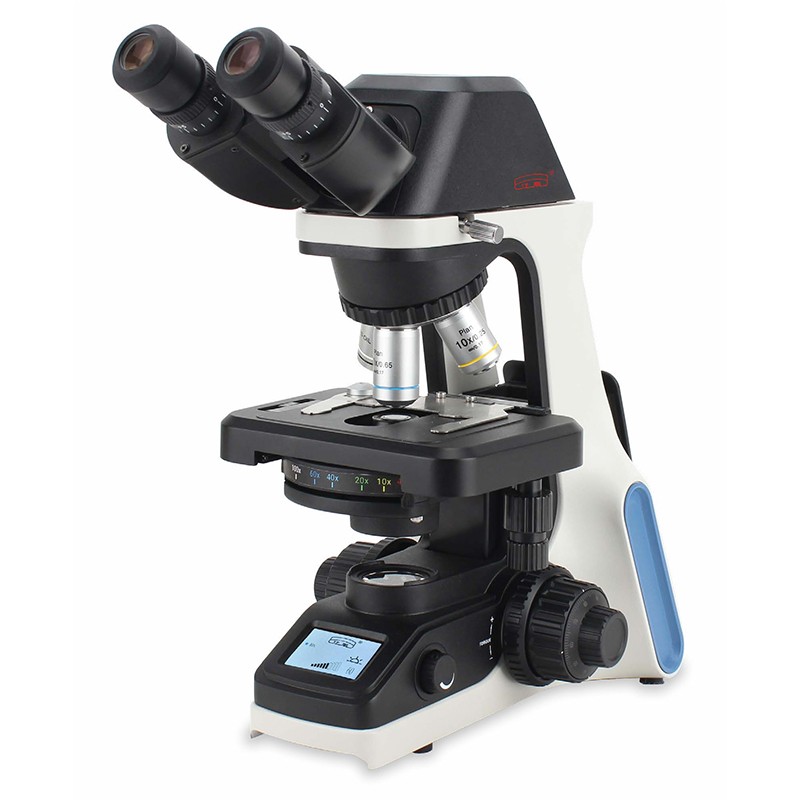

- Product name：NE300 compact teaching experiment biological microscope
- Application:This microscope is widely used in education & teaching, basic scientific research, and clinical & public health testing fields.
In classroom teaching or daily work in laboratory, you need a
microscope like NE300, not only compact, durable, but also
accurate and reliable. After all, both micro-teaching classroom
and inspection scientific research require users to work
long time in space-limited operation table. Not only so, this
Optical microscope is also simple to operate and easy to use,
considering the using experience of beginners.
With it, students’ learning will be more effective, and the
work of the laboratory staff will be also with high proficiency.

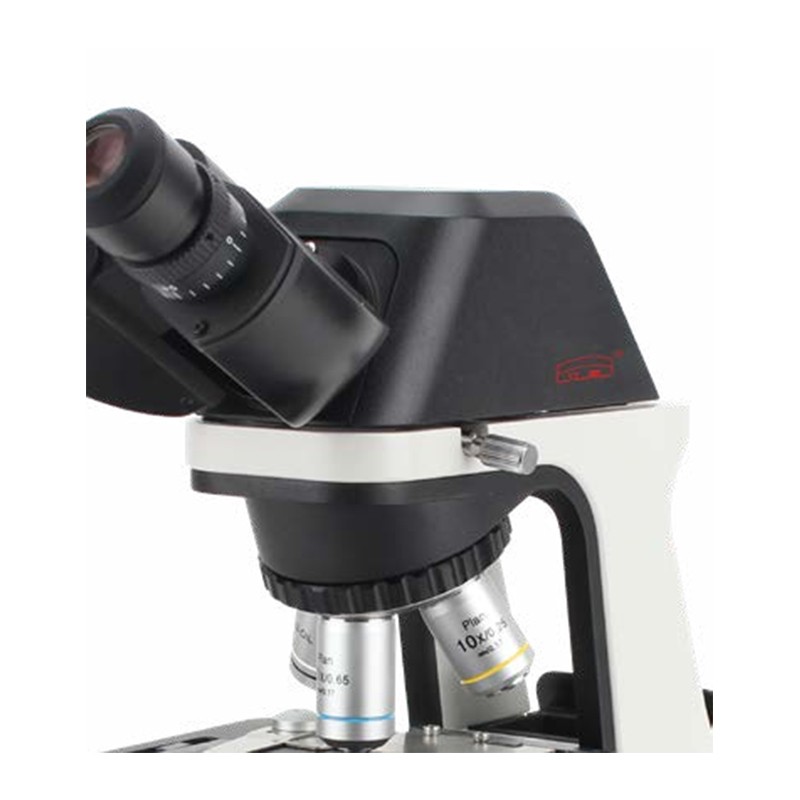

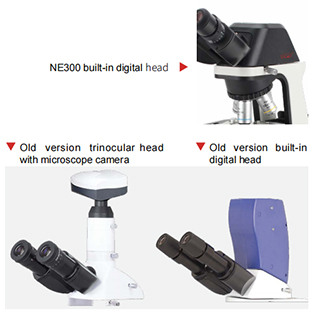

Integrated digital head
Optional integrated digital head, same size as normal
binocular head, the microscope can be connected to
network and build a digital interactive classroom,
Micro-morphology interactive teaching by using NOW.
Lab system could help to save teaching time. There
is no protruding camera interface,so microscope is
more concise and the daily maintenance is more
convenient.
Carrying handle and hub device
Equipped with a special carrying handle and
lightweight, stable, and stable in structure.

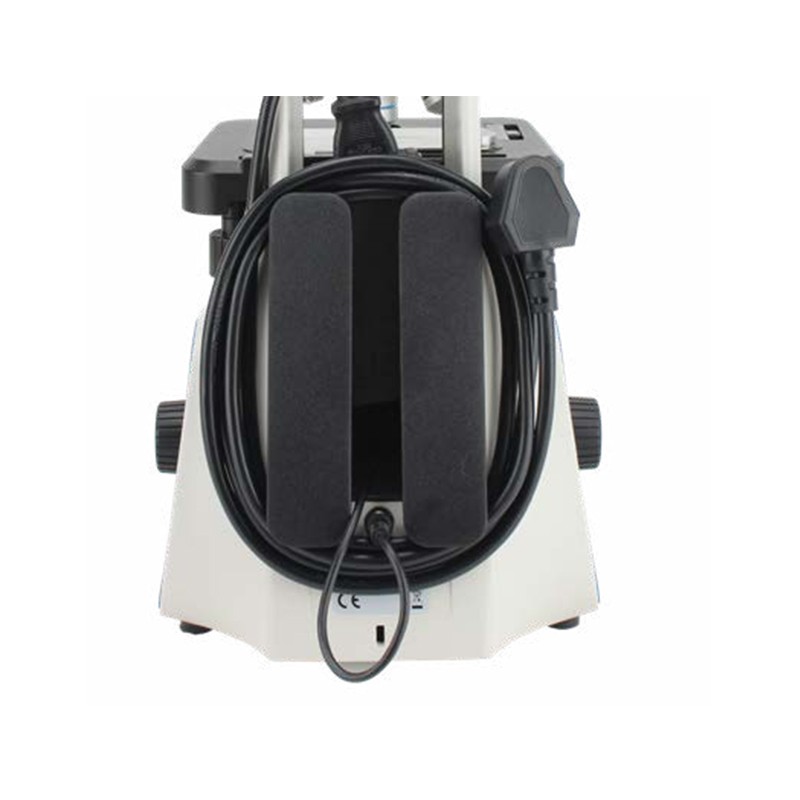

The back of microscope is designed with a hub device
to accommodate long power cords effectively, reducing
the power cord trip accident during the process of

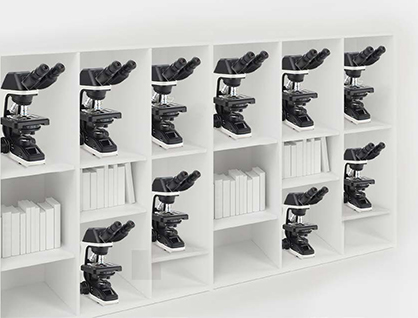

transport. Small size could minimize storage space.
Specification
|
Item |
NE300 Binocular set |
NE300 Trinocular set |
NE300 Digital set |
|
Main body |
NE300 Binocular set |
NE300 Trinocular set |
NE300 Digital set |
|
Optical system |
NIS infinity optical system |
NIS infinity optical system |
NIS infinity optical system |
|
Illumination |
High luminescent white 3W LED illuminator |
High luminescent white 3W LED illuminator |
High luminescent white 3W LED illuminator |
|

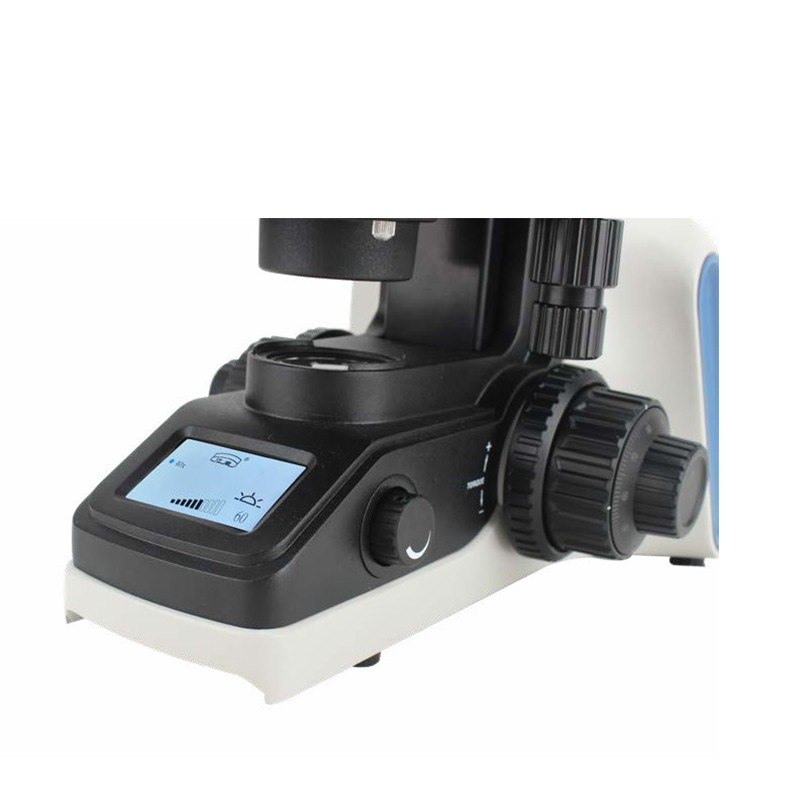

Display |
LCD display magnification, time sleeping, brightness indication and lock, etc. |
LCD display magnification, time sleeping, brightness indication and lock, etc. |
LCD display magnification, time sleeping, brightness indication and lock, etc. |
|
Eyepieces (F.O.V., mm) |
EW10X/20, With diopter adjustment |
EW10X/20, With diopter adjustment |
EW10X/20, With diopter adjustment |
|
Tubes |
Seidentopf binocular tube |
Seidentopf trinocular tube |
Integrated digital viewing tube |
|
Nosepiece |
Reversed-type quadruple nosepiece (coding) |
Reversed-type quadruple nosepiece (coding) |
Reversed-type quadruple nosepiece (coding) |
|
Stage |
Rectangular mechanical stage 180mm X 130mm, with specimen holder, with vernier calibrations, moving range: 74 mm x 30 mm |
Rectangular mechanical stage 180mm X 130mm, with specimen holder, with vernier calibrations, moving range: 74 mm x 30 mm |
Rectangular mechanical stage 180mm X 130mm, with specimen holder, with vernier calibrations, moving range: 74 mm x 30 mm |
|
Objectives |
Plan Achromat 4XPlan Achromat 10XPlan Achromat 40XPlan Achromat 100X |
Plan Achromat 4XPlan Achromat 10XPlan Achromat 40XPlan Achromat 100X |
Plan Achromat 4XPlan Achromat 10XPlan Achromat 40XPlan Achromat 100X |
|
Condenser |
Inserted condenser NA1.25 |
Inserted condenser NA1.25 |
Inserted condenser NA1.25 |
|
Observation method |
Brightfield |
Brightfield |
Brightfield |
