Professional Endoscope Objective Customization
- Category： Biological microscopes
·We have a full range of capabilities in optical design, structural design, manufacturing,
product assembly, and testing.
·Customization is available according to customer requirements and specifications.
·OEM manufacturing is also available based on customer-provided designs.
·Multiple standard endoscope lenses are available for customers to choose, and the
structure can be modified according to customer requirements.
·Our products comply with the requirements of Chinese national standards YY0068-2008
and YY/T1587-2018 for medical endoscopes.

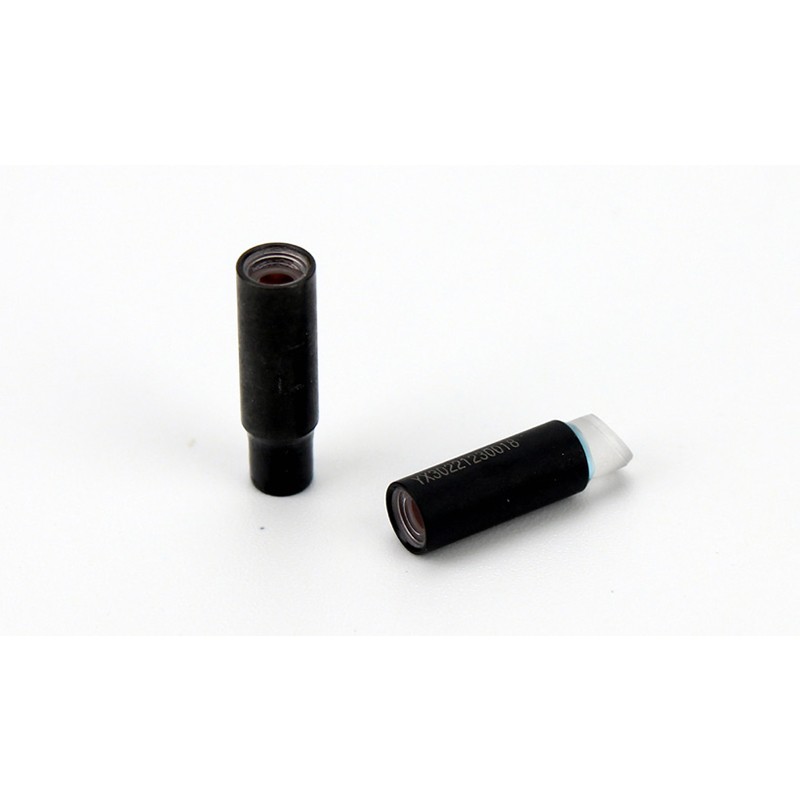

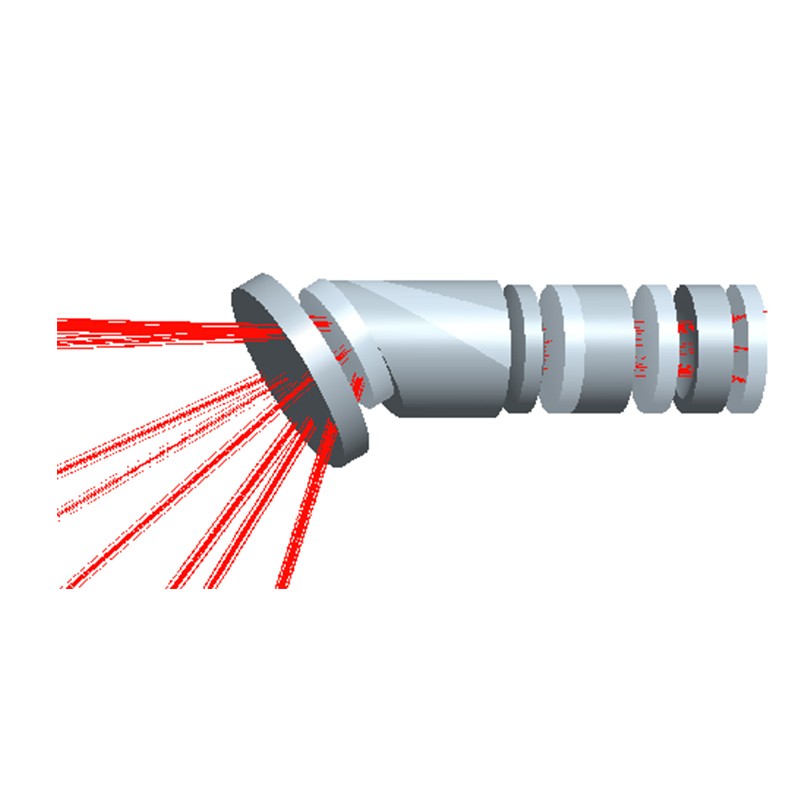

Electronic Endoscope Objective
Type
Viewing angle 0°& 30 °
(OEM, ODM with OV2740 chip)
Manufacturing Capabilities
classical polishing process for small lenses,
Small lens cementing process,
MTF testing and control, reliability assurance (lenses
can withstand temperature shocks from 0-100°C
more than 2000 circles)
|
Type |
EEL-1668-00/30 |
EEL-1386-00/30 |
EEL-1694-00/30 |
|
Viewing Angle |
0°, 30° |
0°, 30° |
0°, 30° |
|
Chip Size |
1/6" |
1/3" |
1/6" |
|
F# |
6.8 |
6.2 |
6 |
|
Field of View |
68 |
86 |
94 |
|
Image Height |
3.1 |
3.8 |
2.6 |
|
Depth of Field (DOF) |
35~50~125 |
35~50~125 |
20~50~200 |
|
Working Wavelength |
Visible Light |
Visible Light + Infrared (830~1000) |
Visible Light |
|
Total Size of Lens |
φ3.2*11 |
φ3.2*12 |
φ3.2*9.3 |

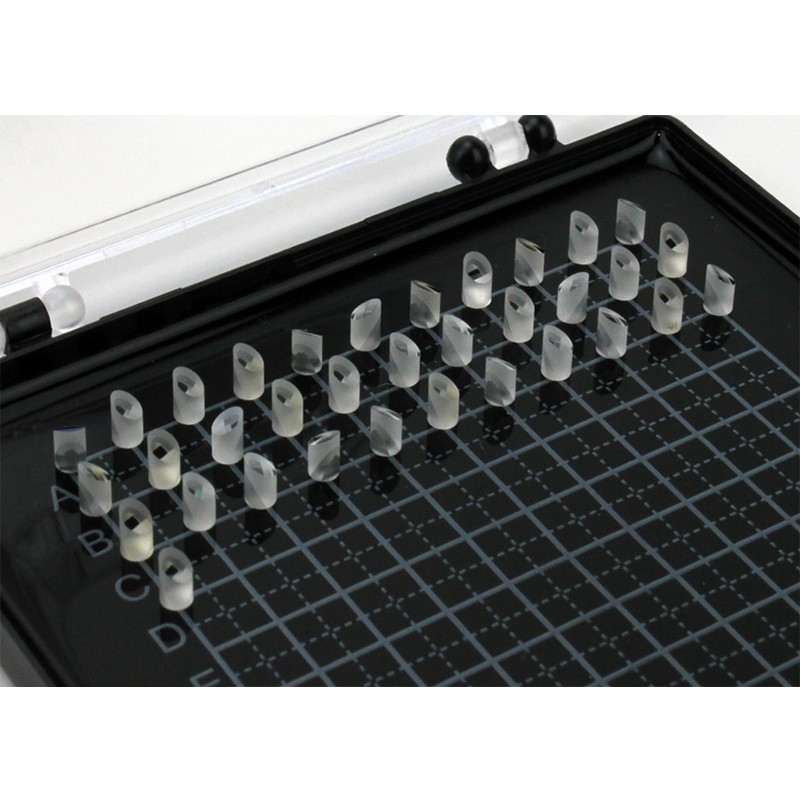

Endoscope Components
Type of the Lenes and Filter
30°, 60°and 70°combination
prism; rod lens; small lens; filter;
sapphire window, etc.
Manufacturing Capabilities
Small lens classical polishing process,
small lens cementing process, prism
cementing, rod lens cementing, OD8
coating capability, surface quality can
meet 2*0.016
|
Type |
EEL-1668-00/30 |
EEL-1386-00/30 |
EEL-1694-00/30 |
|
Viewing Angle |
0°, 30° |
0°, 30° |
0°, 30° |
|
Chip Size |
1/6" |
1/3" |
1/6" |
|
F# |
6.8 |
6.2 |
6 |
|
Field of View |
68 |
86 |
94 |
|
Image Height |
3.1 |
3.8 |
2.6 |
|
Depth of Field (DOF) |
35~50~125 |
35~50~125 |
20~50~200 |
|
Working Wavelength |
Visible Light |
Visible Light + Infrared (830~1000) |
Visible Light |
|
Total Size of Lens |
φ3.2*11 |
φ3.2*12 |
φ3.2*9.3 |
