Upright Biological Microscope

Category： Biological microscopes
Brand:Shu Yu
Product name：N-127/N-128 Series
Application ：Research Institutes, Colleges and Universities, Healthcare, Biomedicine
INQUIRY EMAIL

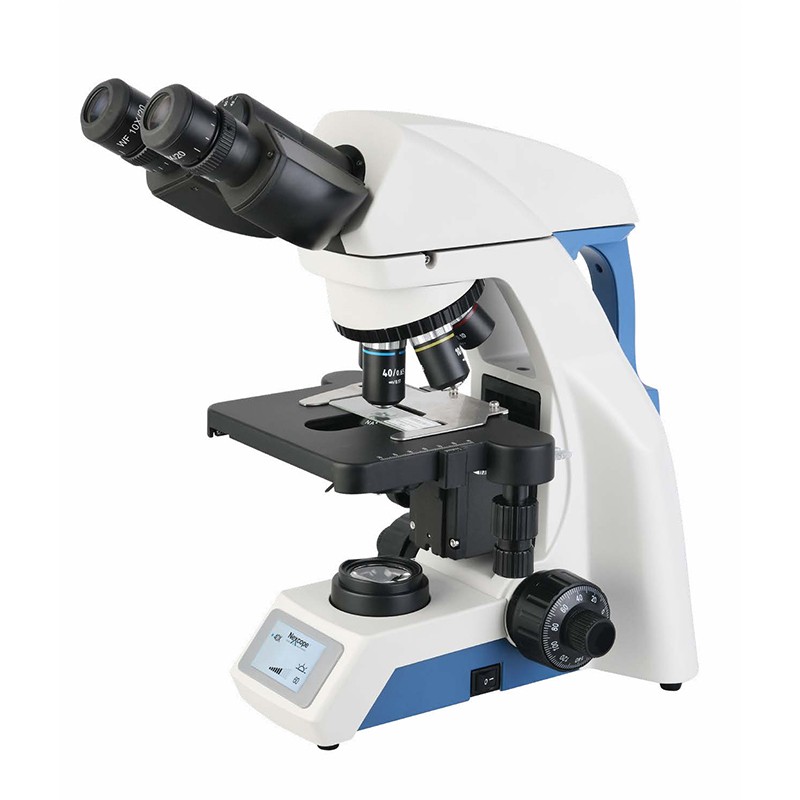

N-127/N-128 Series
High-quality Teaching Microscope with
Practicality and Durability

The N-127 / N-128 series Microscopes are specially designed for various microscopy teaching
needs such as life sciences, pathological examination and clinical diagnosis.It has good
optical quality, wide field of view, excellent objective performance, clear and reliable imaging.
Ergonomic design provides better comfort and use experience, pays attention to the user's
operating habits, starts from the details, and constantly optimizes.Modular design can realize
various observation methods such as bright field, dark field, phase contrast, fluorescence,
etc., providing more possibilities for your scientific research and exploration.It takes up little
space and is very convenient for handling, storage and maintenance, and is the first choice for
microscope beginners.

Excellent Optical Imaging

Excellent Image Quality
The NIS optical system of scientific research microscope is applied to student microscope for the first time.
Excellent optical system is the guarantee of obtaining smooth and clear images.Achromatic objective and even
plan objective can be used in this microscope. It can provide clear images with high contrast, and the clear range
can reach to the edge of the field of view.It has bright and uniform illumination.NIS optical system and optical

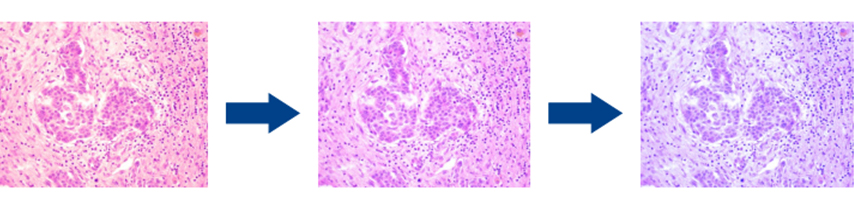

Uniform illumination and adjustable color temperature
LED light source produces sunlight illumination conditions, which makes the sample present natural color.Its color
temperature changes according to observation needs, even if the user changes the brightness, it can maintain
the brightness and color temperature comfortably.The LED design life is 60,000 hours, which not only reduces
maintenance costs, but also stabilizes the brightness during use.

This is a Microscope with Convenient Maintenance

Applicable to Any Environment
Anti-mildew treatment to improve accessories durability.Since the objective, eyepiece and observation tube
are all effectively anti-mildew, they can ensure a continuous and clear image and prolong the service life of the
microscope.Working in hot and humid environment is not affecte

Easy to Store and Transport
The microscope is small enough to fit into a common classroom wall
cabinet.There is a special carrying handle, and it has light weight,
good stability and stable structure.The back panel of the microscope is
designed with a hub device, which can effectively store the long power
cord, improve the cleanliness of the laboratory, and also reduce the trip
accidents caused by the long power cord during transportation.Wooden
storage box as an optional accessory can bring great convenience for
storage and handling.

Use Friendly Microscope

Ergonomic Design
This microscope adopts ergonomic design, high eye point, low-hand
focusing mechanism, low-hand stage and other series of ergonomic
designs to ensure that users can operate the microscope under the most
comfortable conditions and minimize the use of fatigue.

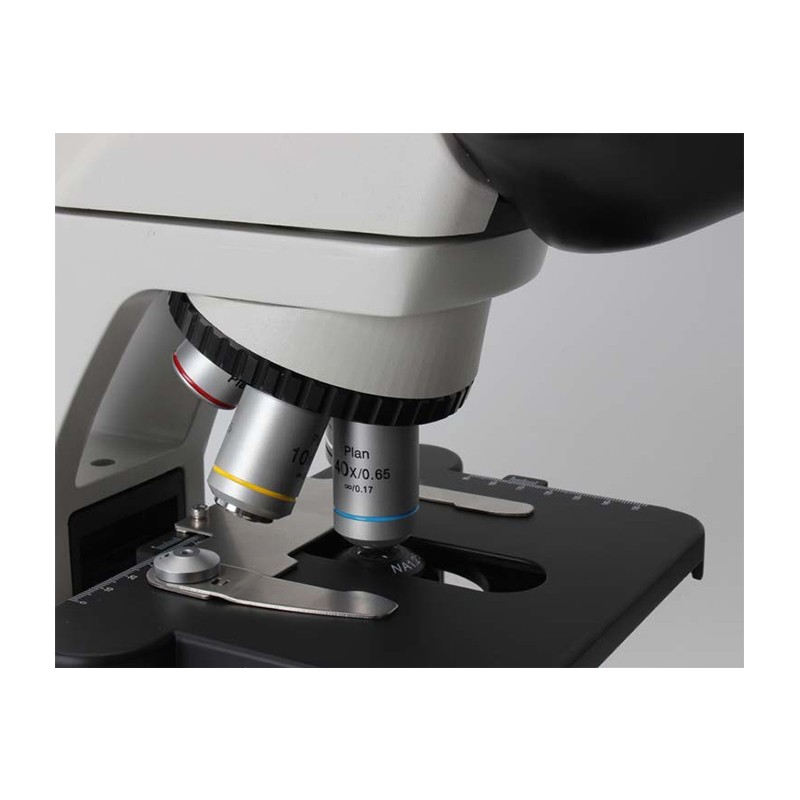

Extremely Smooth Nosepiece
High-precision machining ensures smoothness and durability in use.The
nosepiece has a rubber ring, which is ergonomic and easy to convert.

Stage Designed for Beginners
The reckless stage prevents users from being scratched by exposed parts
during use. The slice clip can be easily operated with one hand. When
the upper limit of the stage is locked, accidental contact between the
objectives and the slide can be avoided. In order to prevent damage
to samples and objectives , the coarse quasi-focus torque adjustment
device can adjust the comfort of use according to personal operating

Microscope Use Status Display
The LCD screen on the front of the microscope can display the use status of the microscope, including
magnification, light intensity, standby status, etc.

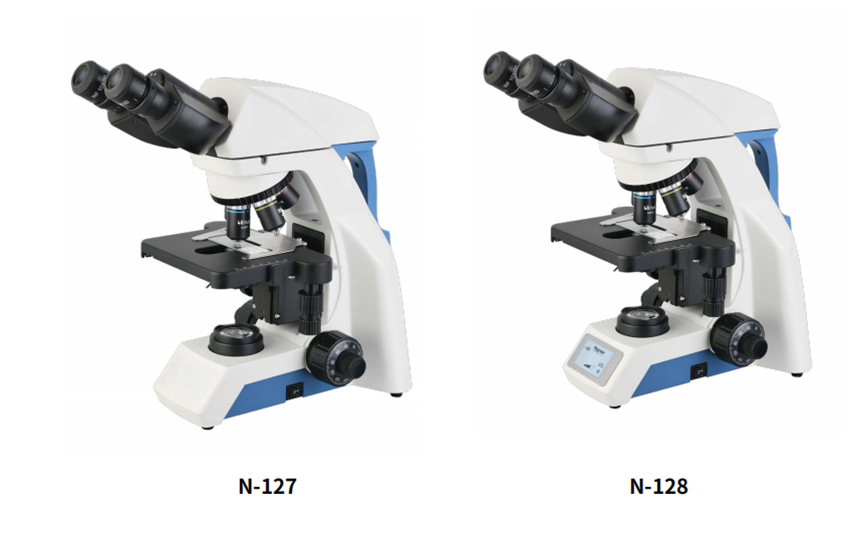

Specification Item	Description	N-127	N-128
Optical System	Infinite Optical System	Standard	Standard
Eyepiece (view)	WF10×(20)	Standard	Standard
Viewing Head	Seidentopf Binocular Viewing Head, Inclined at 30°, Interpupillary 48-75mm, Dual visibility adjustable	Standard	Standard
	Seidentopf Trinocular Viewing Head, Inclined at 30°, Interpupillary 48-75mm, Eyepiece/Camera (100/0,0/100)	Optional	Optional
	Seidentopf Binocular Digital Viewing Head, Inclined at 30°, Interpupillary 48-75mm,USB Output	Optional	Optional
	Seidentopf Binocular Wifi Digital Viewing Head, Inclined at 30°, Interpupillary 48-75mm, 5 MP, Transmission Frame rate up to 1080p	Optional	Optional
Objective	Infinite Semi-Plan Objective	Standard	Standard
	Infinite Plan Objective	Optional	Optional
Nosepiece	Backward Quintuple Nosepiece	Standard	N/A
	Backward Quintuple Coding Nosepiece	N/A	Standard
Stage	Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm	Standard	Standard
Condenser	Abbe Condenser NA1.25	Standard	Standard
	Dark Field Condenser (Dry, Oil)	Optional	Optional
Focusing System	Coaxial Coarse and Fine Adjustment, Left hand has Height Limit Function, Right hand has Coarse Motion Adjustment Function. Coarse Stroke 37.7mm per Rotation, Fine division 0.002mm,Fine Stroke 0.2mm per Rotation, Moving Range 15 mm	Standard	Standard
Illumination	S-LED Illumination	Standard	Standard
	Kohler Illumination	Optional	Optional
	LCD Displays Magnification, Brightness,Color Temperature, etc	N/A	Standard
Fluorescent Attachment	LED Fluorescent Illumination	Optional	Optional
	Mercury Fluorescent Illumination	Optional	Optional
Polarization Attachment	/	Optional	Optional
Phase Contrast Attachment	/	Optional	Optional
Reliability	Anti-mold Treatment of the Whole Machine	Standard	Standard
Filter	Green	Standard	Standard
Accessories	Dust Cover,Power Cable,Manuals	Standard	Standard

Tags: Upright Biological Microscope China Factory Price
