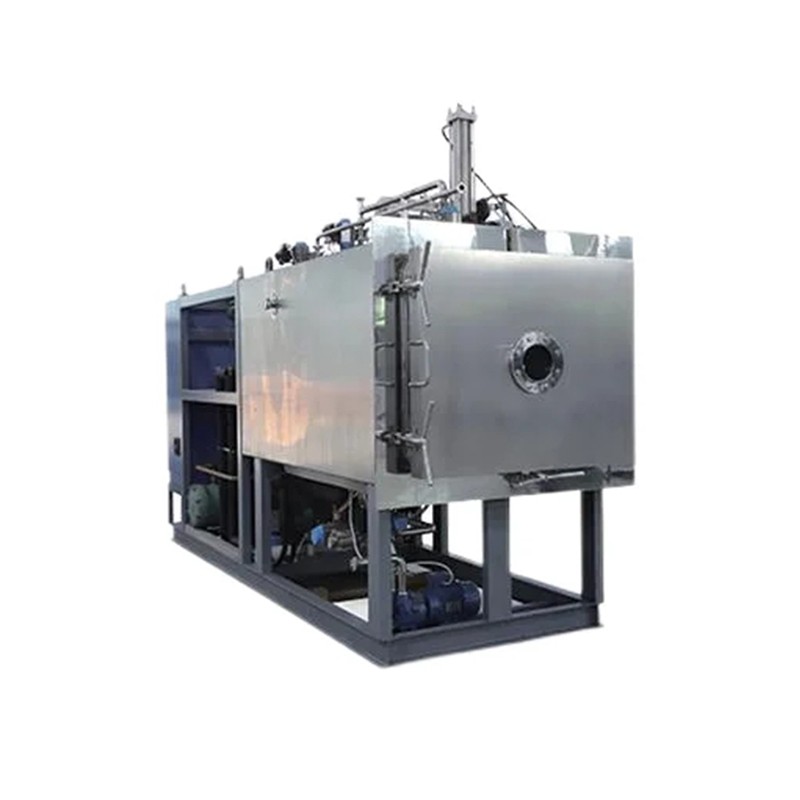

Pharmaceutical freeze dryer
- Category： Industrial Freeze Dryer
- Brand:Shu Yu

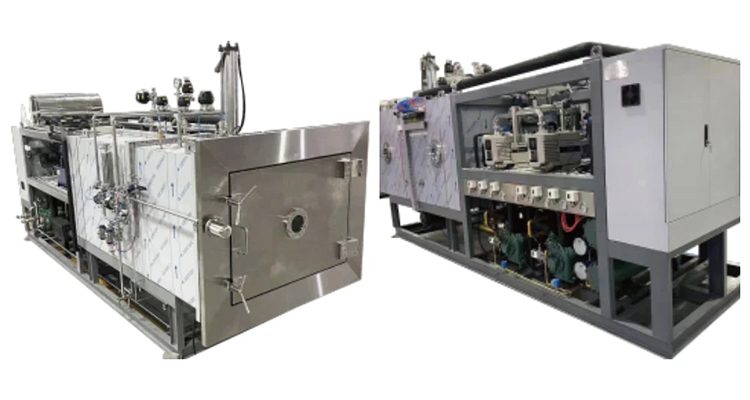

- Name：The SCIENTZ-S production type freeze dryer
- The SCIENTZ-S production type freeze dryer uses true color touch screen + PLC + PID as the control core. The instrument has the advantages of stable, reliable and convenient control system.
In addition, dozens of freeze-drying curve scheme options are built in, and each scheme includes 40-stage temperature control and setting refrigeration compressors, vacuum pump startup protection and other measures to extend the service life of the equipment.Ideal for large-scale freeze-drying of bulk (liquid, pasty, solid) substances.
Features
●Automatic Operation：Pre-freeze drying is performed in situ, reducing the tedious operation of the drying process and achieving automation
● Accurate Temperature Control: Silicone oil is a circulating medium, the temperature error of the separator is ≤ ± 1 ℃, and the drying effect is uniform
●Smart Storage: Transfer data from U disk, compensate the host computer software, print and view the freeze-dried curve
● Fast And Efficient: Drying chamber and cold trap are separated, with strong water catching ability and short drying time
● Intelligent Control: Touch screen operation, PLC control, PID adjustment
● Mode Selectable: Manual lyophilization mode, manual CIP mode, automatic lyophilization mode, automatic CIP mode
● The square tray is not easy to deform, easy to operate and easy to clean
● The drying room adopts a highly transparent colorless transparent plexiglass door, which can clearly observe the change of materials during operation
● Multifunctional option:
1. Optional real-time monitoring of equipment operation, fault alarm
2. APP remote control function is optional
3. Gas filling valve can be filled with dry inert gas. Eutectic point test is optional
Main Technical Parameters
|
Model |
SCIENTZ Production - scale Freeze Dryer |
|||||||||||
|
Dryer area (m²) |
1 |
2 |
3 |
5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
Effective plate area |
1.08 |
2.16 |
3.24 |
5.4 |
7.56 |
9.72 |
14.4 |
19.8 |
25.2 |
31.5 |
40.5 |
51.3 |
|
Ability to capture water (kg/batch) |
20 |
40 |
60 |
90 |
130 |
180 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
Botting capacity Φ16mm (pieces) |
4100 |
8200 |
12300 |
20000 |
30700 |
38800 |
55800 |
76800 |
97700 |
122000 |
157000 |
199000 |
|
Botting Capacity Φ22mm (pieces) |
2100 |
4200 |
6300 |
11000 |
15700 |
19800 |
29600 |
40500 |
51600 |
64500 |
83000 |
105000 |
|
Volume of liquid (L) |
20 |
40 |
60 |
90 |
130 |
180 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
Plate size Width (mm) |
450 |
600 |
600 |
900 |
900 |
900 |
1200 |
1200 |
1200 |
1500 |
1500 |
1500 |
|
Plate size Length (mm) |
600 |
900 |
900 |
1200 |
1200 |
1200 |
1500 |
1500 |
1500 |
1500 |
1800 |
1800 |
|
Layer spacing (mm) |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
|
Plate number (block) |
4 + 1 |
4 + 1 |
6 + 1 |
5 + 1 |
7 + 1 |
9 + 1 |
8 + 1 |
11 + 1 |
14 + 1 |
14 + 1 |
15 + 1 |
19+1 |
|
Plate temperature range (°C) |
|
|
|
|
-50 ～ + 80 (NO Load) |
|
|
|
|
|||
|
Layer temperature difference (°C) |
|
|
|
|
± 1.0 (After Balancing) |
|
|
|
|
|||
|
Cold trap minimum temperature (°C) |
|
|
|
|
≤-70 (NO Load) |
|
|
|
|
|||
|
Ultimate vacuum degree (pa) |
|
|
|
|
≤5 (NO Load) |
|
|
|
|
|||
|
Length (mm) |
2100 |
2800 |
3000 |
3800 |
5000 |
5800 |
6500 |
7400 |
8200 |
8500 |
9000 |
9400 |
|
Width (mm) |
900 |
1200 |
1200 |
1500 |
1500 |
2000 |
2300 |
2300 |
2300 |
2600 |
2600 |
2600 |
|
Height (mm) |
2000 |
2000 |
2300 |
2900 |
3000 |
3200 |
3400 |
3800 |
4000 |
4000 |
4100 |
4500 |
