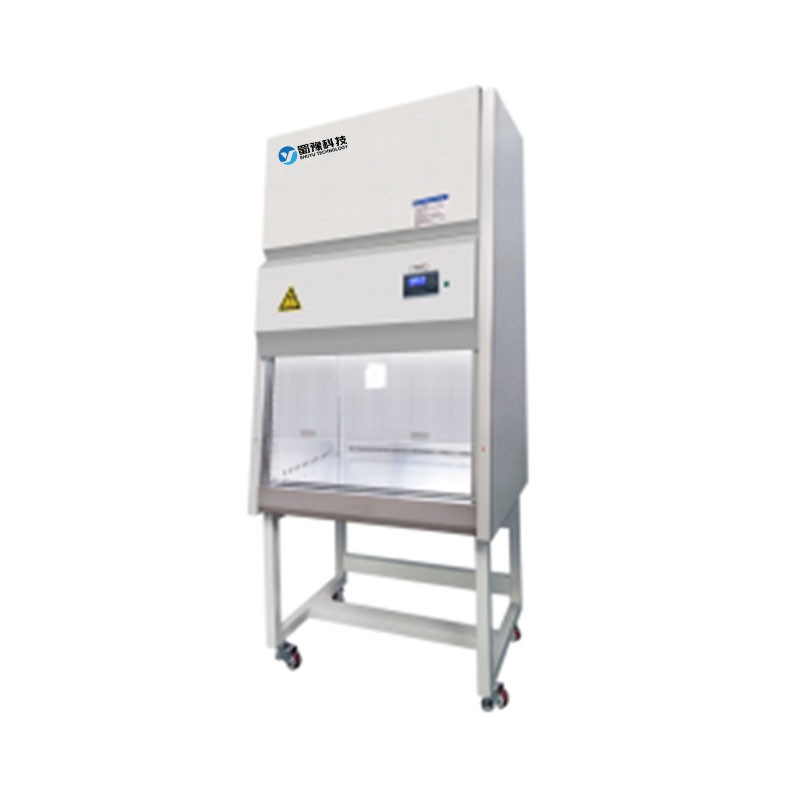

Class II Type A2 Biosafety Cabinet

Category： Biosafety cabinet
Brand:Shu Yu
Name：Biosafety Cabinet BSC
Application:For the prevention, diagnosis, evaluation and monitoring of diseases
INQUIRY EMAIL

Product Description
1.Type & Standards：Class II Biosafety cabinet, air flow mode: 30% efflux, 70% loop. Conform to Pharmaceutical Industry Standards of the People’s Republic of China 《YY 0569 - 2011》. Obtained SFDA medical device registration certificate and production license.
2.Structure & Material：Outer box: High - quality cold - rolled steel plate, electrostatic sprayed. Operation area (three sides): Integrated stainless steel structure. Internal cleanable parts: 10mm large rounded corners for easy cleaning. Front window glass door: 6mm thick safety tempered glass.
3.Filtration & Fan：Two HEPA filters, filter efficiency: ULPA@0.12μm 99.9995%, filter membrane made of borosilicate glass fiber (no partition). High - quality fan, wind speed auto - adjustable, low noise.
4.Sensors & Control：High - sensitivity, high - precision breeze speed sensor, non - pressure difference sensor for real - time wind speed monitoring. Independently developed control software system (national software copyright certificate). LCD screen: Displays working area temp, air flow velocity, etc.; adjusts parameters; has blue screen digital indication, password modification, etc.
5.Alarms & Protection：Filter alarm: Real - time display of filter remaining life, sound & light alarm for replacement. Height limit/low limit alarm for moving glass door. Unique negative pressure anti - leakage design (working area surrounded by negative pressure, zero leakage). Chain protection design: Front window opening turns off germicidal lamp, turns on lamp & fan.
6.Other Features：Front window: Integrated sliding door (arbitrary positioning), UV lamp operable when fully closed. UV lamp: Reservation & timing functions. Equipment: One spare socket.

Technical Parameters

Item/Model	BSC-600ⅡA2	BSC-1000ⅡA2	BSC-1300ⅡA2	BSC-1600ⅡA2
Cleanliness Level	HEPA：ISO Class4（Class10）
Supply air velocity	0.33m/s±0.025
Inflow air velocity	0.53m/s±0.025
Noise	≤67dB
Power/Maximum power consumption	AC，220V/50HZ / 0.8KW	AC，220V/50HZ / 1KW	AC，220V/50HZ / 1.5KW	AC，220V/50HZ / 1.5KW
Biosecurity personnel protection	All impact sampler samples CFU≤10, Slit sampler CFU≤5
Product protection	All petri dish samples CFU≤5
Cross-contamination protection	All petri dish samples CFU≤2
Dimension of working area	600x500x520 mm	1000x520x640mm	1300x520x640mm	1600x520x640mm
Overall dimension	740x650x1850 mm	1165x760x2200mm	1465x760x2200mm	1765x760x2200mm
Illumination	≥800LX	≥900LX	≥900LX	≥900LX
Weight	110kg	240kg	260kg	280kg
Number of Operator	1	1	1 - 2	2 - 3
Draft direction	Top
