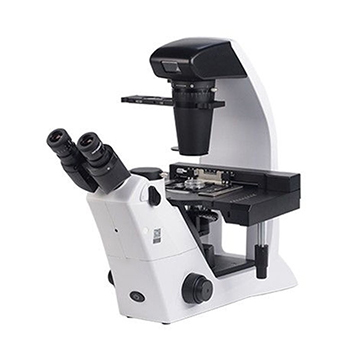

MIX60 Inverted Microscope: Transforming Biological Research

In biological research, Microscopes are indispensable tools for exploring the microscopic world. The MIX60 inverted microscope stands out as a game-changer. It matches the high-end imaging of the well-known Olympus CKX53—all while being built for research-grade use.

Digital Intelligence: Elevating User Experience
The MIX60’s core innovation lies in its digital smart module. A key feature is the ECO light-off function. With a advanced sensor, the microscope automatically turns off the light after a preset idle time. This saves energy and extends the light source’s lifespan, blending eco-friendliness and cost savings.

Complementing this is an intuitive OLED digital display on the body. It shows real-time critical data: current objective lens magnification and light intensity. To make use even easier, the microscope adds a voice broadcast function. It simplifies choosing the right objective magnification, streamlining operations.

Phase Contrast Observation: Revealing Cellular Details
The MIX60 excels at phase contrast observation across multiple magnifications. Its condenser includes a push-pull phase contrast insert plate. When paired with different phase contrast objectives, researchers can do phase contrast observations at various magnifications. This is vital for clearly seeing the shape of living cells—key for in-depth biological studies.

Versatility: Meeting Diverse Research Needs
Flexibility is another strength of the MIX60. Its universal sample holder fits many common culture containers: multi-well plates, culture bottles, and even extra-large containers (thanks to its reversible design). Plus, the stage can expand to 351mm × 251mm—giving plenty of space for different experiments.

Optical Excellence & Precision Engineering
The MIX60’s performance relies on a strong optical and mechanical system:

A 200mm infinity optical system for high-quality images.
WF10X/22 plan eyepieces (high eye point, adjustable diopter) for comfortable viewing.
A quintuple nosepiece (with ball bearings and anti-fungus design) for smooth, reliable objective switching.
For focusing, the coaxial coarse/fine adjustment lets you tweak with precision (2μm minimum fine focus)—perfect for capturing tiny details. The transmitted illumination uses a 3W full-spectrum white LED (brightness adjustable). It also supports φ34mm color filters (blue, green, yellow, etc.) via a removable holder, plus manual control of the aperture diaphragm.

With its top-tier imaging, smart features, flexible observation, and adaptability to different containers, the MIX60 inverted microscope is set to become a must-have for researchers. It will drive progress in biological research and open new doors for exploring the microscopic world.
