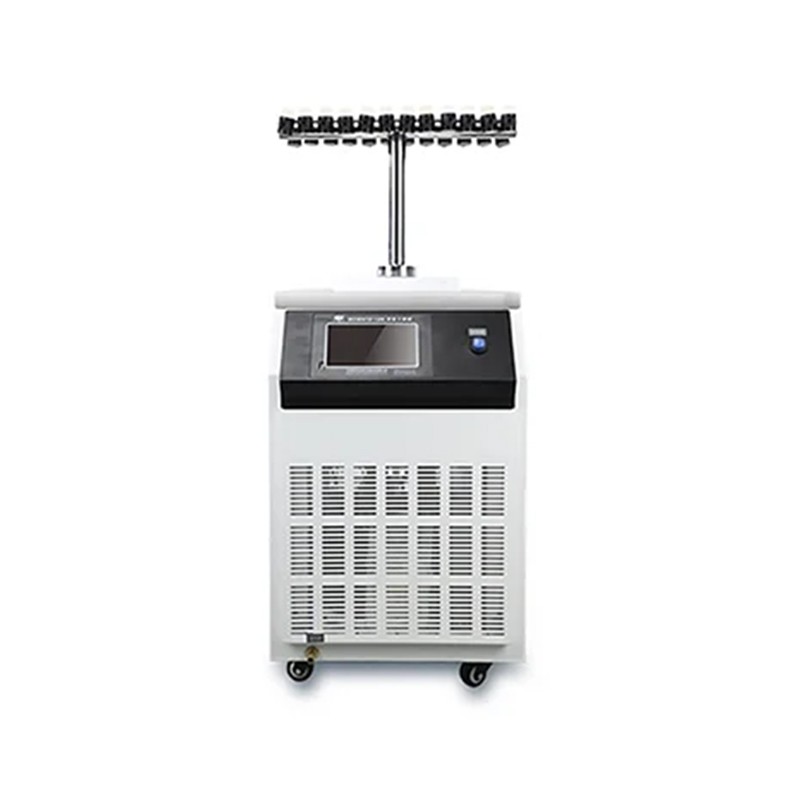

T Type Lab Freeze Dryer

Category： Laboratory Freeze Dryer
Brand:Shu Yu
Name：SCIENTZ-12N/E Lab Freeze Dryer
SCIENTZ-12N/E ampoule bottle T Type Lab Freeze Dryer has a water capture capacity of up to 4kg/batch. It has a greater water capture capacity and a larger cold trap size based on the 10N model, but it
INQUIRY EMAIL

Description
The SCIENTZ-12N/E ampoule bottle T Type Lab Freeze Dryer boasts a water-capture capacity of up to 4 kg per batch. Relative to the 10N model, it exhibits enhanced water-capture capacity and an enlarged cold-trap dimension, while retaining a compact form factor to effectively conserve valuable laboratory space.

Employing advanced imported compressors, the system delivers robust functionality and furnishes a highly automated, high-precision freeze-drying environment (standard no-load temperature: -56℃; optional -80℃ compressor configuration). This equipment represents an optimal solution for small and medium-sized laboratories engaged in freeze-drying operations for small-to-medium batch volumes and diverse material.

Working Principle
Vacuum freeze drying technology is also known as freeze drying technology in China. It refers to the process of drying solid materials by sublimating directly from solid to gas without passing through the liquid phase under vacuum conditions. During the freeze drying process, the solvent sublimates directly from solid to gas because the solid components are supported by the hard solid solvent in its place. When the solid solvent sublimates, pores will be left in the remaining dried material, so the original chemical structure and morphology of the solute will not be destroyed. In addition, biologically active materials can still restore their pre-freeze drying conformation and biological functions after redissolving. Therefore, freeze drying technology is considered to be a drying method with the least impact on the properties of the dried material and the safest.

Technical Parameters

Model	SCIENTZ - 12N/E
Specification	Ampoule Bottle T - Frame Type
Freeze - Drying Area (m²)	N/A
Water Capture Capacity (kg/batch)	4
Vial Capacity (Vials)	Φ12mm: N/AΦ16mm: N/AΦ22mm: N/A
Number of Manifolds	24
Number of Eggplant - shaped Bottles	N/A
Number of Ampoule Bottle Interfaces	24
Tray Solution Volume (L)	N/A
Material Tray Dimensions (mm)	N/A
Spacing Between Material Trays (mm)	N/A
Number of Material Trays	N/A
Cold Trap Dimensions (mm)	Φ250×250
Minimum Cold Trap Temperature (℃)	≤ - 56 (No Load)
Minimum Cold Trap Temperature at - 80℃ (℃)	≤ - 80 (No Load)
Ultimate Vacuum Degree (Pa)	≤ 5 (No Load)
Power (Kw, 220V 50Hz)	1
Power (at - 80℃)	1.4
Ambient Temperature (℃)	≤ 25
Overall Dimensions of the Whole Machine	600(L)×450(W)×720(H)+440
Overall Dimensions of the Whole Machine at - 80℃	800(L)×525(W)×755(H)+440
Special Notes	1. The overall dimensions and weight do not include the external vacuum pump.2. The overall height of B/D type Freeze Dryers does not include the manual capping handle (an additional height of approximately 70mm).
