Manifold Freeze Dryer

Category： Laboratory Freeze Dryer
Brand:Shu Yu
Name：SCIENTZ-10N/D

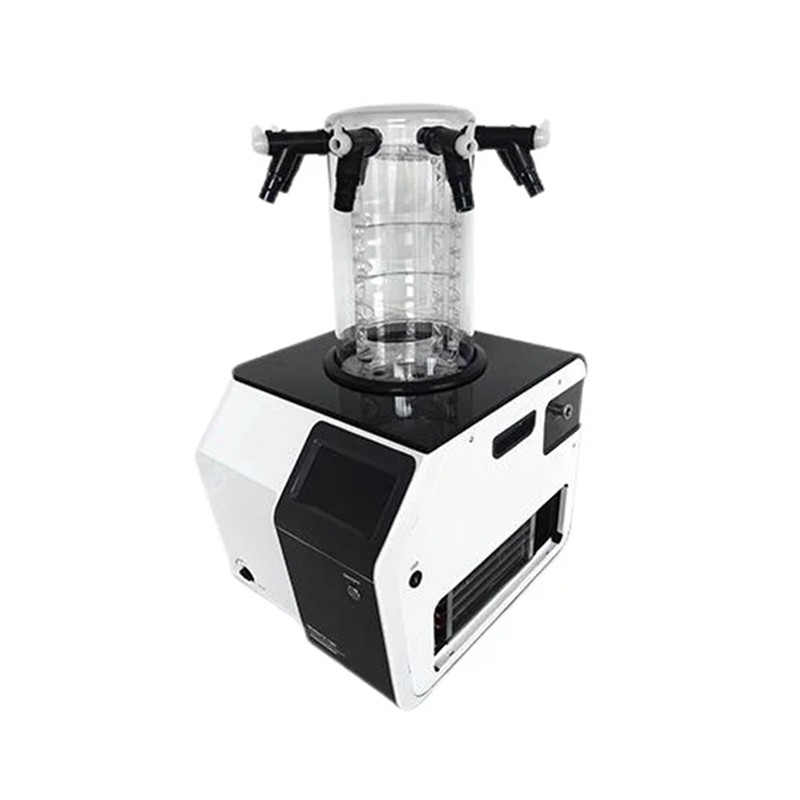

SCIENTZ-10N/D manifold freeze dryer with a capped multi-manifold has a compact design that effectively saves laboratory space while retaining excellent performance. The equipment is equipped with an a
INQUIRY EMAIL

SCIENTZ - 10N/D manifold Freeze Dryer has a freeze - drying area of 0.08 square meters and a water capture capacity of 3 kg/batch. The compact design effectively saves laboratory space while maintaining excellent performance. The equipment is equipped with advanced imported compressors, which ensures excellent stability and powerful functions, and provides a highly automated high - quality freeze - drying environment. Under no - load conditions, the lowest temperature can reach - 56°C, and the temperature can be further reduced to - 80°C through optional configurations to meet a wide range of experimental needs. The single processing volume can reach up to 3 kg, which is very suitable for small and medium - sized laboratories to carry out freeze - drying of small batches and multiple varieties of materials. Whether it is scientific research or production applications, this equipment can achieve efficient and precise freeze - drying, fully meeting the user's strict requirements for processing different samples.

Optional Function

● Eutectic point test function, master the material better sublimation temperature. Vacuum control function to maximize heat transfer.
● Double-stack refrigeration system, mature technology, low temperature, for -80 ℃ Freeze Dryer. In the case of
● Wide mouth multi-manifold freeze-dried bottle conﬁguration, easy to install materials, with the import standard freeze-dried bottle valve supporting the connection.
● Optional electric defrost function, speed up the defrost speed, shorten the drying cycle. Optional multi-brand imported vacuum pump.

Features
● The machine uses international brands EMBRACO or SECOP compressor refrigeration, refrigeration quickly, cold trap temperature is low.
● 7-inch true color touch LCD screen control system, easy to operate, and powerful.
● Industrial embedded operating system, ARM9 core control circuit design, 32M memory 128M FLASH, the operation response speed, large amount of stored data.
● The control system automatically saves the freeze-dried data, and can be real-time curve and historical curve in the form of view, the entire freeze-drying process clear.
● Drying room with a colorless transparent injection molding polycarbonate drying trap, corrosion-resistant, non-friable,non-adhesive, high transparency, strong sealing, the sample is clear and intuitive, can observe the freeze-drying of the whole product.
● Vacuum pump and host connection using international standard KF quick connector, simple and reliable.
● The machine can store multiple freeze-drying curve, and use U disk to extract data to the computer, with the host computer software in the computer to browse print and a variety of options.
● Equipped with inﬂatable valve, can be ﬁlled with dry inert gas.

Main Technical Parameters

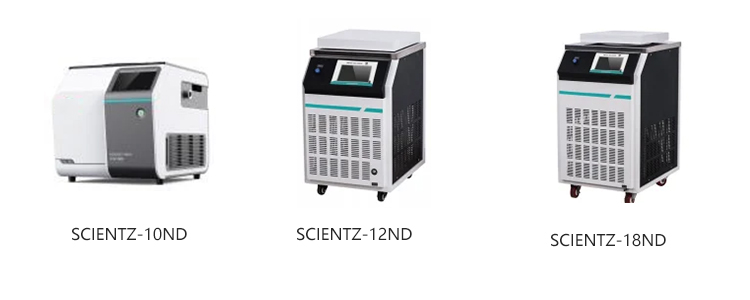

Model		SCIENTZ-10N				SCIENTZ-12N				SCIENTZ-18N

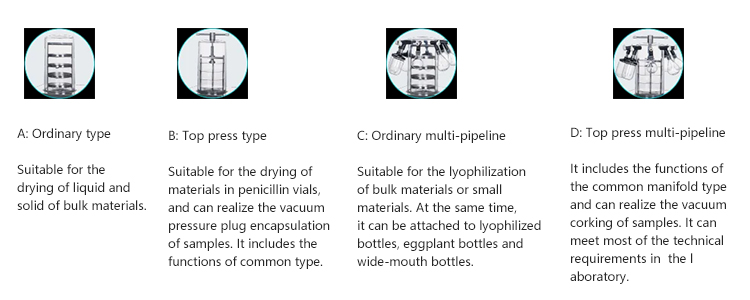

Type		Ordinary	Top press	Ordinary multi- pipeline	Top-press multi- pipeline	Ordinary	Top press	Ordinary multi- pipeline	Top-press multi- pipeline	Ordinary	Top press	Ordinary multi- pipeline	Top-press multi- pipeline
Dryer area( m2 )		0.12	0.08	0.12	0.08	0.12	0.08	0.12	0.08	0.18	0.09	0.08	0.19
Ability to capture water(Kg/batch)		3	3	3	3	4	4	4	4	6	6	6	6
Vials quantity	Φ12mm	920	560	920	560	920	560	920	560	1320	990	1320	990
	Φ16mm	480	285	480	285	480	285	480	285	698	349	480	285
	Φ22mm	260	165	260	165	260	165	260	165	360	184	360	184
Eggplant shaped ﬂask		0	0	8	8	0	0	8	8	0	0	8	8
Plate load capacity (L)		1.5	1	1.5	1	1.5	1	1.5	1	2	1	2	1
Plate size(mm)		Φ200	Φ180	Φ200	Φ180	Φ200	Φ180	Φ200	Φ180	Φ240	Φ200	Φ240	Φ200
Plate distance (mm)		70
Tray quantity（pc）		4	3	4	3	4	3	4	3	4	3	4	3
Cold chamber size(mm)		Φ250×150				Φ250×250				Φ300×405
Cold trap the lowest temperature(°C )		≤-56 (No load)
Ultimate vacuum(Pa)		≤5 (No load)
Power Kw(220V50Hz)		0.95				1				1.3
Amibient temperature(°C )		≤25
Overall dimension（mm）		590(L)×460(W)×450(H)+440				600(L)×450(W)×720(H)+440				670(L)×525(W)×910(H)+480
Special note		The device size and weight not included in the external vacuum pump Top press model height not included in manual gland handle (The handle height 701mm)

Optional function：double refrigeration system ，cold trap up to -80℃ defrost function import vacuum pump automatic nitrogen ﬁlling interface T-type ampoule bottle rack
